Features
- 2-Ball Lower End Style
- 40:1 Ratio
- 8'' Air Motor
- 3.7 GPM (14 LPM) max flow
- Excellent for low- to medium viscosity materials up to 100,000 cPs.
Pump Casing Materials
- Lower Pump Model Material – 300 Series SS w/ Tungsten Carbide Seat
Packing Options
- AF0840G11FF47 17-4 Stainless Steel w/ Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66300-C4D
- AF0840G11KK47 17-4 Stainless Steel w/ Hard Chrome Plunger - Glass Filled PTFE / Glass Filled PTFE - Lower end 66300-34D
- AF0840G11FF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE - Lower end 66300-C4G
- AF0840G11GF47 17-4 Stainless Steel w/ Hard Chrome Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 66300-P4D
Accessories
- 67445-3 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 67136 Floor/Follower Plate Adapter
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637305-C43 637305-343 637305-P43
| RATIO | 40:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | 1” NPT(F) |
| 2” NPT(M) | |
| Material Outlet | 1” NPT(F) Air Inlet (female) 1/2” NPT(F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 30 - 120 (2.1 - 8.3) |
| Fluid Pressure Range psi (bar) | 1200 - 4967 (82.2 - 342.6) |
| Max Cycles/Minute | 70.0 |
| Displacement/Cycle cu in (cm3) | 14.5 (237.6) |
| Cycles/gal (L) | 15.9 (4.2) |
| Flow @ 60 Cycles gpm (L/min) | 3.7 (14.0) |
| Noise Level @ 60 psi dBA | 86.8 |
| Weight* lb (kg) | 68.1 (30.9) |
| Container Suitability | Remote Mounting |

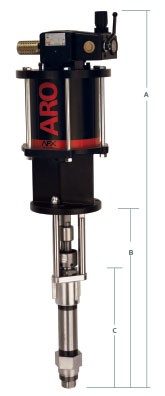

Dimensions
| A* IN (MM) | 45.65 (1159.43) |
|---|---|
| B in (mm) | 22.59 (573.84) |
| C in (mm) | 12.66 (321.59) |
*For models without ball valve regulator subtract 2.08 in (52.83 mm)
