TP1223C51XXXXXXX

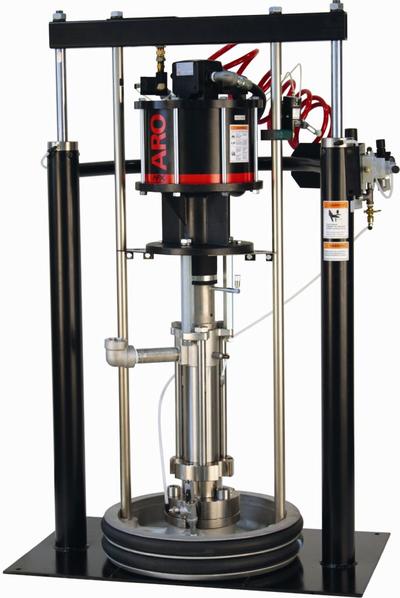

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

  • Two Ball Lower End Style
  • 23:1 Ratio
  • 12'' Air Motor
  • 18.1 GPM (68.6 LPM) max flow
  • Excellent for low to medium viscosity materials up to 100,000cps

Package

  • TP1223C51FF35TAC - 55 Gallon Two Post Ram - AF1223C51FF35
  • TP1223C51FFP5AN2 - 55 Gallon Two Post Ram - AF1223C51FFP5

Follower Plate Options

  • 67409-6 Double-Lip, Polyurethane - Aluminum w/PTFE Coating
  • 67410-2 Double-Tube, EPR - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66353-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (Standard)
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: TP1223C51XXXXXXX
