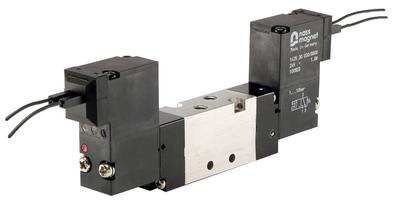

Sierra 15 Body Ported

Body Ported

  • 2-position single and double solenoid models.
  • Two wiring options: Lead Wire and Plug-In.
  • Available in 120V AC, 24V DC or 12 V DC.
  • One-Touch Manual Valve Override (Standard)
    Mechanical valve override is nonlocking spring * return push with tool.
  • Wiring and Voltage Options
    Lead-Wire Style: Valve lead wires come stripped and preattached to the coil (NEMA 4).
    Plug-In Style: valves require a CSN Connector for quick, clean wire connect and disconnect. Plug-in lead wires come stripped standard. (NEMA 2). All models are available in either 120V AC, 24V DC. (12V DC Available on plug in only.)
  • Ultra-compact Valve Design
    At only 15 mm wide, Sierra 15 is the one compact valve that is going to fit your valve location requirements – with room to spare.
  • Durable Body Construction
    Sierras body features bar stock aluminum construction, producing a light weight, yet durable valve.

Manifold Options

  • Low Profile manifolds for use with body threaded valves are available in 2, 4, 6, 8, 10, 12, and 16-Station configurations.
  • Manifolds available with 1/8” NPT ports. Sierra Valves and manifolds are sold separately.
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: Sierra 15 Body Ported
