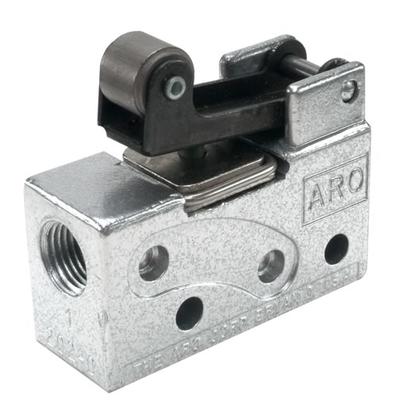

200 Series

Numerous Actuator Styles

  • Mechanical
    Short Roller Lever, Long Roller Lever, One-Way Short Lever, One-Way Long Lever, Pin Plunger, Short Ball Roller, Long Ball Roller, Straight Plunger, Roller Plunger, Cross-Roller Plunger
  • Manual
    Plain Lever, Fingertip Lever, Centering Toggle, Retained Toggle, Panel Button

Comprehensive Valve Design

1. Durable Valve Body.
Body is die cast zinc for high wear resistance. Valve also features a stainless steel, PTFE coated spool, with Viton O-ring seals and Buna-N seals.
2. Two Plumbing Options.
Available with 1/8” NPTF ports, or instant tube fittings for use with 5/32” (4mm) nylong tubing.
3. Numerous Actuator Styles.
Five manual, ten mechanical and one pilot actuators to choose from. Eight can be panel mounted.

Features

  • 200-Series valves can be plumbed to perform as normally passing, normally non-passing, selector or any 2-way function.
  • Ideal for sensing the position of moving devices such as cylinders, slides, or gates.
  • Mounting holes are standard 1" electrical centers.
