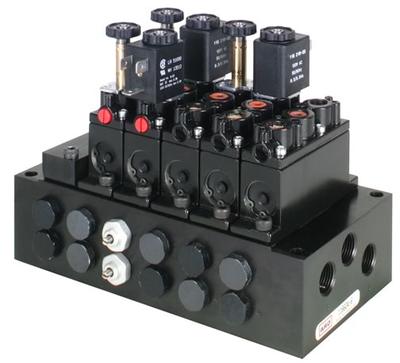

Alpha (Thin) Manifold

Versatile Design

  • Alpha can be ordered as a two-position or three-position valve
  • 5-year Warranty.
  • Valve Body, End Plate and Manifold material is zinc.

Superb Performance

  • ALPHAs bonded, precision ground spool resists wear & provides excellent shift response.
  • Large air passages result in high flow characteristics. Listings detail Cv factor and maximum flow rates.

Numerous Control Options

  • Control the valve one of five ways: Solenoid/Spring, Solenoid/Solenoid, Solenoid/Pilot, Pilot/Spring, or Pilot/Pilot
  • Optional external solenoid supply allows operation for vacuum service and low pressure applications. (Kit # 119306)

Features

  • "Thin" Manifold Valves: Thin, 1" width means more valves in less space. Faster assembly than stacking style valves. 2, 4, 6, 8, and 10 station manifolds are available. Use optional blanking plates for odd-numbered stations. 1/8" and 1/4" (NPT) models, with 3/8" supply or exhaust ports. Speed Controls install directly into manifold, cutting set-up time.
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: Alpha (Thin) Manifold
