Versatile Design
- Alpha can be ordered as a two-position or three-position valve.
- 5-year Warranty.
- Valve Body, End Plate and Manifold material is zinc.
Superb Performance
- ALPHAs bonded, precision ground spool resists wear & provides excellent shift response.
- Large air passages result in high flow characteristics. Listings detail Cv factor and maximum flow rates.
Numerous Control Options
- Control the valve one of five ways: Solenoid/Spring, Solenoid/Solenoid, Solenoid/Pilot, Pilot/Spring, or Pilot/Pilot
- Optional external solenoid supply allows operation for vacuum service and low pressure applications. (Kit # 119306)
Features

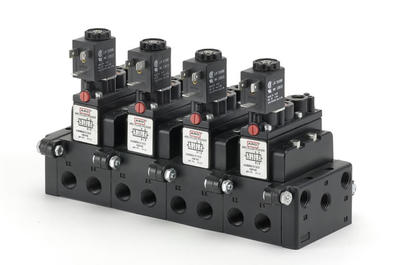

- Sub-base Valves: Replace valves easily! Simply remove three screws, lift off valve and replace. Math made simple! Add or subtract manifolds by removing an end plate and changing the valve stack as needed. No tie rods to make changing manifold lenghts difficult. Port sizes of 1/8", 1/4", 3/8" and 1/2" with ISO port identifications. Sub-base Valves use the same electrical coils and connectors as the ALPHA Body Ported Valve. Both End Plates can be used for common supplies and exhaust in high flow applications.
