Versatile Design
- Alpha can be ordered as a two-position or three-position valve.
- 5-year Warranty.
- Valve Body, End Plate and Manifold material is zinc.
Superb Performance
- ALPHAs bonded, precision ground spool resists wear & provides excellent shift response.
- Large air passages result in high flow characteristics. Listings detail Cv factor and maximum flow rates.
Numerous Control Options
- Control the valve one of five ways: Solenoid/Spring, Solenoid/Solenoid, Solenoid/Pilot, Pilot/Spring, or Pilot/Pilot
- Optional external solenoid supply allows operation for vacuum service and low pressure applications. Kit # 119306
Features

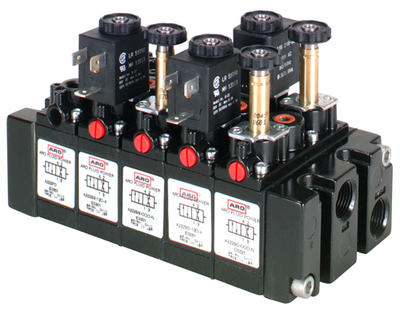

- Stacking Valves: The lowest cost method of ganging valves, because it eliminates the manifold. Flip out design. Loosen the end plate cap screws to swing the valve up and out. No need to disassemble entire stack to replace one valve. Bodies stack on 1" centers. Circuits can be designed and mounted in a compact area. When stacked, ALPHA becomes a 4-way, 4-ported valve. 3/8" common end plate ports with 1/8" or 1/4" working ports in the valve body.
