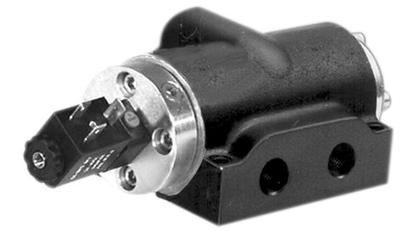

K Series

Comprehensive Valve Design

  • Aluminum body
    Sand Cast aluminum body provides a rugged, reliable valve.
  • Buna N Seals
    Standard seals are Buna N, for extended valve life. Viton seals are available for high temperature applications. Consult factory for ordering information.
  • Sturdy Spools
    K-Series valves have an aluminum spool. This slides in a hard anodized PTFE non-stick aluminum sleeve. (3/8” or 1/2” models).The sleeves are brass on 3/4” and 1” models.
  • Standard Solenoid Override Feature
    3/4” and 1/2” models only.
  • External Solenoid
    External Solenoid supply port enables valve operation for vacuum service or low pressure operations. For proper supply connection, consult factory. (Remove end cap and rotate gasket 90-degress for remote solenoid supply).

Features

  • Styles and Options: 5-Port, 4-Way, 2 and 3-position directional control valves.
  • Seven Actuator Styles: Manual, Hand Lever, Pedal, Treadle, Palm Button, electric, (Single Solenoid & Double Solenoid), Pneumatic, (Pilot & Bleed)
