Comprehensive Valve Design
1. Durable Valve Body
Valve body is die-cast Zinc, with a zinc chromate coating for added corrosion resistance in harsh environments.
2. Superior Performance
Large, unrestricted air passages produce high flow and fast response times.
3. Superior Design

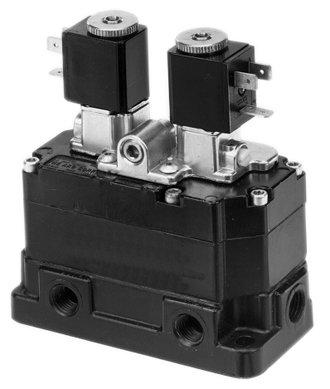

3-Way valves feature a single poppet. 4-Way valves have two simultaneously driven poppets to provide the 4-way function.
Features
- H-Series Valves feature high-flow and fast response.
- Numerous Styles and Options.
- 3-Way and 4-Way 2-position Poppet Valves.
- Several Actuator Styles.
- Override is not available with "H" Series Valves.
- Electric: 3-Way Single Solenoid, 4-Way Solenoid/ Internal Pilot, 4-Way Double Solenoid
- Pneumatic: 3-Way Pilot/Spring, 4-Way Double Pilot, 4-Way Manual Bleed, 4-Way Pilot/Internal Pilot
ENGINEERING OPERATION & MAINTENANCE MANUAL
