1/4” NPT ports with flow of 26 SCFM.
Numerous Actuator Styles
- Manual

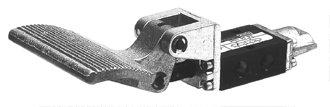

Hand Lever, Palm Button, Pedal, Treadle - Mechanical
Cam Stem, Roller Cam - Electric
Single Solenoid, Double Solenoid - Pneumatic
Pilot, Bleed
Many Performance Features
- Buna-N spool seals are standard. Viton Seals are available for high temperature applications. Consult the factory for ordering information.
- The E Series Valve has a low profile. An extruded aluminum body provides excellent durability and lighter weight.
- An External Solenoid Supply Port allows service in low pressure applications. This requires a #116153 plug Kit.
Solenoid Override
- Manual locking override is standard on solenoid models. Turn override to operate.
- Solenoid override is a convenient means to set-up and trouble shoot circuits. Air pressure at the solenoid exhaust will also override the solenoid.
Coils
- Coils are UL and CSA Listed (Files: UL #MH13513; CSA #LR51090).
Features
- 3-Way & 4-Way Valves
- Several Styles and Options: 3-Way or 4-Way Configurations. 2-and 3-position configurations.
ENGINEERING OPERATION & MAINTENANCE MANUAL
