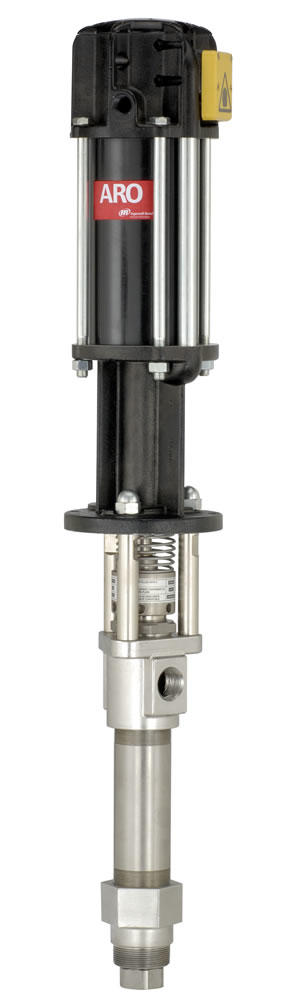

650483-X4X

Features

  • Integrated wet cup ensures extended pump life!!
  • Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation
  • Durability - Ultra Coated (ceramic) Plunger Rod and Tube for superior abrasion resistance
  • Versatility - Multiple mounting configurations & materials of construction for your application needs
  • Environmentally Sound - Optional muffler ensures pump meets OSHA specifications
  • Serviceability - Minimal fluid section part count for simple, efficient repairs

Materials of Construction

  • Lower Pump Material: 316 Stainless Steel
  • Plunger Material: 17-4 Stainless (hard chrome plated or ceramic coated)

Packages

  • NP424R-02-P43 Ram Mounted Extrusion Package
  • NP424R-52-343 Ram Mounted Extrusion Package
  • NP424R-52-R43 Ram Mounted Extrusion Package
  • NP424R-53-R43 Ram Mounted Extrusion Package

Packing Options

  • Glass Filled PTFE
  • UHMW-PE
  • UHMW-PE/Leather staggered
  • UHMW-PE/PTFE staggered (upper) / UHMW-PE (lower)
  • PTFE/UHMW-PE staggered (upper) / PTFE (lower)

Accessories

  • C28241-810 Air Line F / R / L
  • 66101 Wall Mount
  • 62274 Air Line Oil
  • 91790 Air Motor Muffler
  • 66333-B Wet Sol
  • 67136 Floor / Follower Plate Adapter
  • 65138 Floor Mount
  • 61268 Air Section Service Kit
  • 637305-X43 Lower End Repair Kit
Product Name: 650483-X4X
