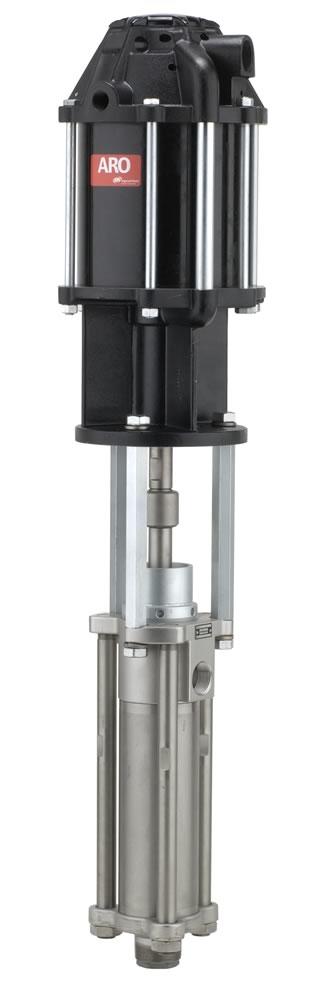

613112-XXF-C

Features

  • Integrated wet cup ensures extended pump life!!
  • Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation
  • Durability - Hard chrome plated plunger improves abrasion resistance
  • Versatility - Multiple mounting configurations & materials of construction for your application needs
  • Environmentally Sound - Optional muffler ensures pump meets OSHA specifications
  • Serviceability - Minimal part count combined with Tie Rod construction for ease of service & repairs

Materials of Construction

  • Lower Pump Material: 316 Stainless Steel
  • Plunger Material: 321 Stainless Steel (hard chrome plated)

Packing Options

  • UHMW-PE, Multiple-Wave Spring
  • CG filled PTFE, no Spring
  • UHMW-PE, Multiple-Wave Spring with alternate seat material
  • CG filled PTFE, no Spring with alternate seat material
  • Mineral-filled PTFE, Multiple-Wave Spring
  • Mineral-filled PTFE, Multiple-Wave Spring with alternate seat material
  • UHMW-PE/PTFE staggered (upper) / UHMW-PE (lower), Multiple-Wave Spring
  • UHMW-PE/PTFE staggered (upper) / UHMW-PE (lower), Multiple-Wave Spring with alternate seat material
  • PTFE/UHMW-PE staggered (upper) / Mineral-filled PTFE (lower), Multiple-Wave Spring
  • PTFE/UHMW-PE staggered (upper) / Mineral-filled PTFE (lower), Multiple-Wave Spring with alternate seat material

Accessories

  • 28353 Air Line F / R / L
  • 66542 Wall Mount
  • 67187-1 Mounting Post
  • 62274 Air Line Oil
  • 92460 Air Motor Muffler
  • 66333-B Wet Sol
  • 67136 Floor / Follower Plate Adapter
  • 66614 Air Section Service Kit
  • 637211-X63 Lower End Repair Kit
Product Name: 613112-XXF-C
