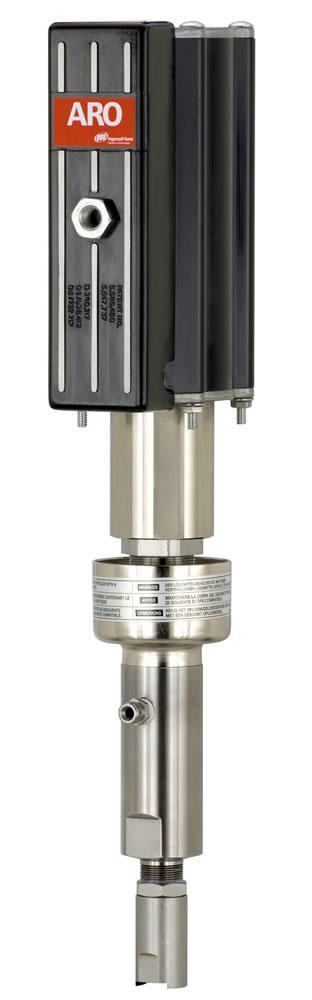

NM2328A-11-X11 "N" Series Pump

Features

  • 2-Ball Lower End Style
  • 28:1 Ratio
  • 3'' Air Motor
  • 0.38 GPM (1.4 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - Stainless Steel

Packing Options

  • 440 series Stainless steel with Glass Filled P.T.F.E. (upper and lower)
  • 440 series Stainless steel with UHMW-PE / Leather (staggered) (upper and lower)
  • 440 series Stainless steel with UHMW-PE / Glass Filled PTFE (staggered) (upper and lower)
RATIO 28:1
Stroke 3”
Material Inlet 1/2” NPT(F)
Material Outlet 1/4” NPT(M)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Fluid Pressure Range psi (bar) 0 – 4,200 (0 – 289.7)
Max Cycles/Minute 125.0
Displacement/Cycle cu in (cm3) 1.4 (22.9)
Cycles/gal (L) 157.5 (43.5)

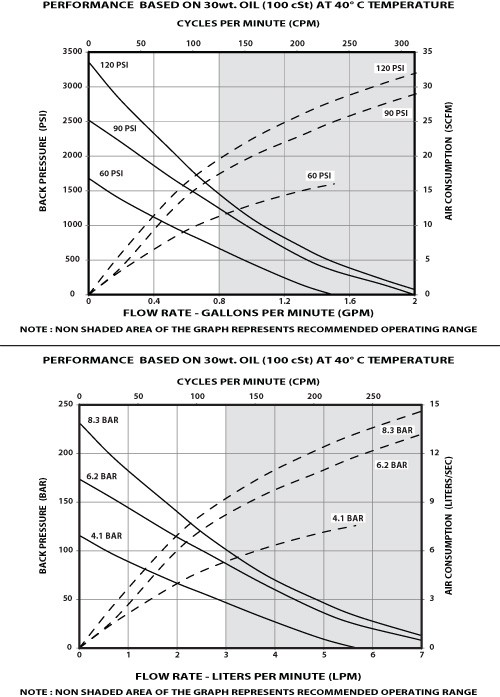

Flow @ 60 Cycles gpm (L/min) 0.38 (1.4)
Noise Level @ 60 psi dBA 85 @100 psi
Weight* lb (kg) 13 (5.9)

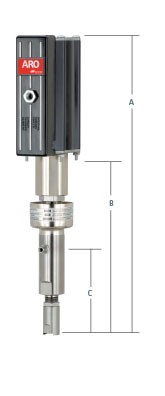

Dimensions

A* IN (MM) 21.75 (552.1)
B in (mm) 13.03 (331)
C in (mm) 6.25 (158.6)
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: NM2328A-11-X11 "N" Series Pump
