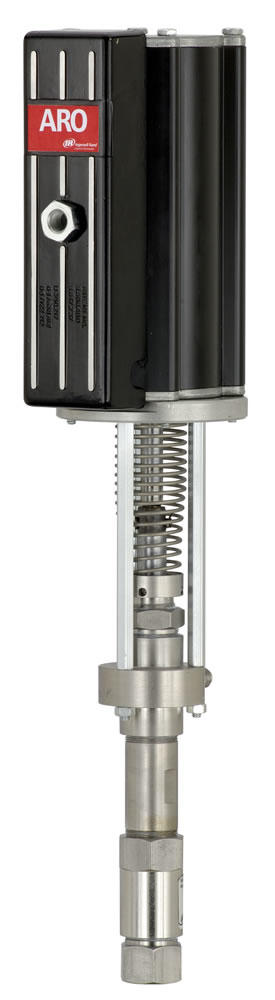

NM2318B-13-X43 "N" Series Pump

Features

  • 2-Ball Lower End Style
  • 18:1 Ratio
  • 3'' Air Motor
  • 0.61 GPM (2.3 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - Stainless Steel

Packing Options

  • 400 series Stainless steel, hard
  • chrome plated, with UHMW-PE (upper and lower)
  • 400 series Stainless steel, hard
  • chrome plated, with Mineral filled PTFE (upper and lower)
RATIO 18:1
Stroke 3”
Material Inlet 1/2” NPT(F)
Material Outlet 1/4” NPT(F)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Fluid Pressure Range psi (bar) 0 – 2,700 (0 – 186.2)
Max Cycles/Minute 120.0
Displacement/Cycle cu in (cm3) 2.3 (37.6)
Cycles/gal (L) 98.3 (26.5)
Flow @ 60 Cycles gpm (L/min) 0.6 (2.3)
Noise Level @ 60 psi dBA 85.0
Weight* lb (kg) 12.6 (5.7)

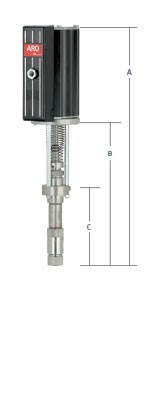

Dimensions

A* IN (MM) 23.187 (563.6)
B in (mm) 13.812 (334.2)
C in (mm) 6.937 (175.4)
