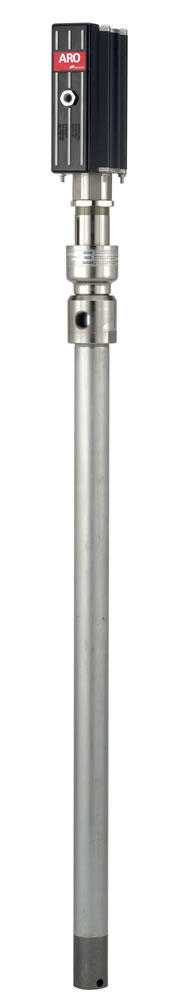

NM2304A-X1-X11 "N" Series Pump

Features

  • 2-Ball Lower End Style
  • 4:1 Ratio
  • 3'' Air Motor
  • 2.1 GPM (8 LPM) MAX FLOW
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - Carbon Steel

Packing Options

  • Carbon Steel Plunger with UHMW-PE (upper and lower)
  • Carbon Steel Plunger with Glass filled PTFE (upper) / Virgin PTFE (lower)
  • Carbon Steel Plunger with Glass filled PTFE / Leather staggered (upper) / Virgin PTFE (lower)
RATIO 4:1
Stroke 3”
Material Inlet 1-1/4” NPT(F) or Immersed
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Fluid Pressure Range psi (bar) 0 – 600 (0 – 41.4)
Max Cycles/Minute 125.0
Displacement/Cycle cu in (cm3) 8.2 (134.3)
Cycles/gal (L) 28.2 (7.4)
Flow @ 60 Cycles gpm (L/min) 2.1 (8.0)
Noise Level @ 60 psi dBA 85 @100 psi
Weight* lb (kg) 32 (14.5) - 46 (20.9)

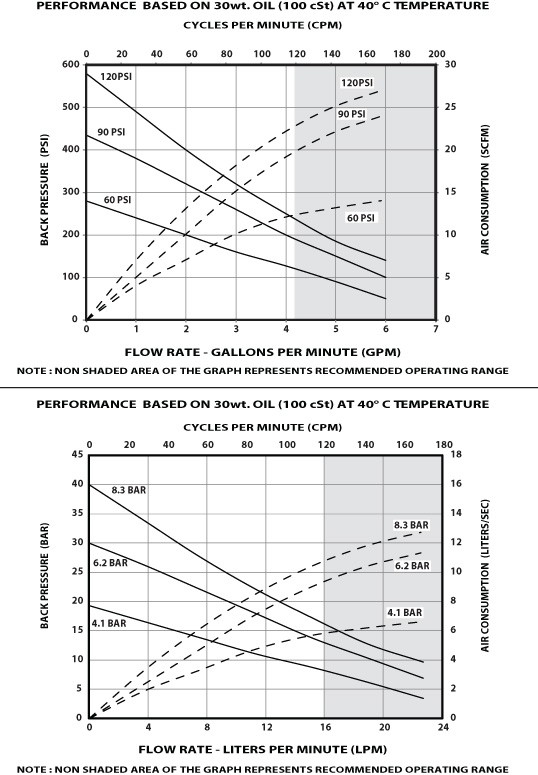

NM2304A Performance Curve



NM2304B Performance Curve

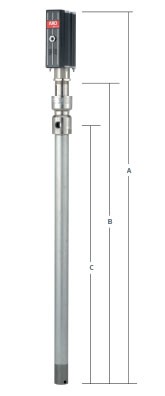

Dimensions

MODEL A IN (MM) B IN (MM) C IN (MM)
NM2304A-11-X11 30.25 (768.5) 11.75 (297.7) 13.187 (334.2)
NM2304A-41-X11 55.625 (1413.0) 37.125 (942.2) 38.562 (978.7)
NM2304B-11-X11 28.125 (714.4) 9.718 (246.8) 11.096 (281.8)
NM2304B-41-X11 51.656 (1312.1) 33.25 (844.6) 34-5/8 (879.6)
