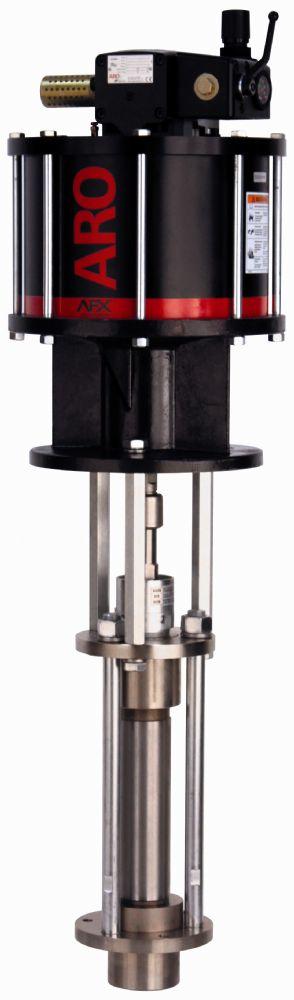

AF1265BXXXXXX

Features

  • 2-Ball Lower End Style
  • 65:1 Ratio
  • 12'' Air Motor
  • 6.27 GPM (23.7 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs

Pump Casing Materials

  • Lower Pump Material - Carbon Steel, Nickel-Plated

Packing Options

  • AF1265B11HH47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE/Leather (Staggered) - Lower end 66475-G4D
  • AF1265B11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66475-C4D
  • AF1265B11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66475-R4D

Accessories

  • 67445-5 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor/Follower Plate Adapter
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637098-G4 637098-C43 637098-R43
RATIO 65:1
Stroke 6” (15.24 cm)
Material Inlet 2” NPT(F)
Material Outlet 1” NPT(F)
Air Inlet (female) 3/4” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 90 (2.1 - 6.2)
Fluid Pressure Range psi (bar) 1950 - 5850 (134.5 - 403.4)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 20.7 (339.2)
Cycles/gal (L) 11.2 (2.9)
Flow @ 60 Cycles gpm (L/min) 6.27 (23.7)
Noise Level @ 60 psi dBA 93.0
Weight* lb (kg) 147 (66.7)
Container Suitability Remote Mounting

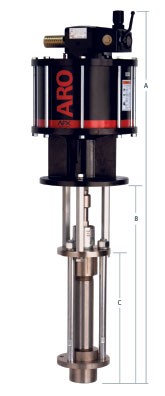

Dimensions

A* IN (MM) 50.27 (1276.91)
B in (mm) 27.19 (690.58)
C in (mm) 16.06 (408.00)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
