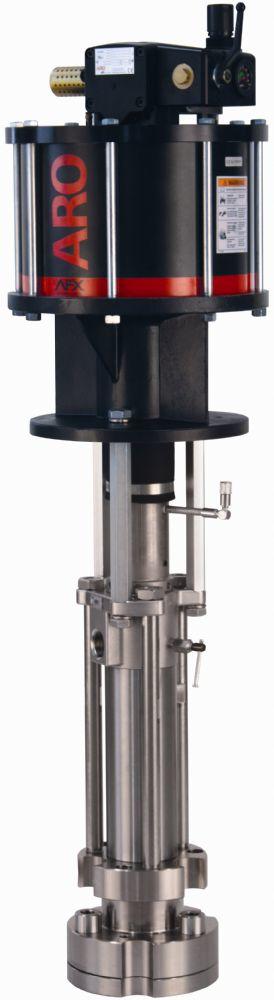

AF1223C5XXXXX

Features

  • 2-Ball Lower End Style
  • 23:1 Ratio
  • 12'' Air Motor
  • 18.1 GPM (68.6 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Model Material - 300 Series / CF8M Stainless Steel w/ Large Inlet

Packing Options

  • AF1223C51FF35 321 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 67372-C6F
  • AF1223C51FFP5 321 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 67372-CEF

Accessories

  • 67445-5 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67136 Floor/Follower Plate Adapter
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637444-C6D 637444-CED
RATIO 23:1
Stroke 6” (15.24 )
Material Inlet 2” NPT(F)
Material Outlet 1-1/4” NPT(F)
Air Inlet (female) 3/4” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 90 (2.1 - 6.2)
Fluid Pressure Range psi (bar) 690 - 2070 (47.6 - 142.8)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 59.8 (979.9)
Cycles/gal (L) 3.9 (1.0)
Flow @ 60 Cycles gpm (L/min) 18.1 (68.6)
Noise Level @ 60 psi dBA 93.0
Weight* lb (kg) 140 (63.5)
Container Suitability Remote Mounting

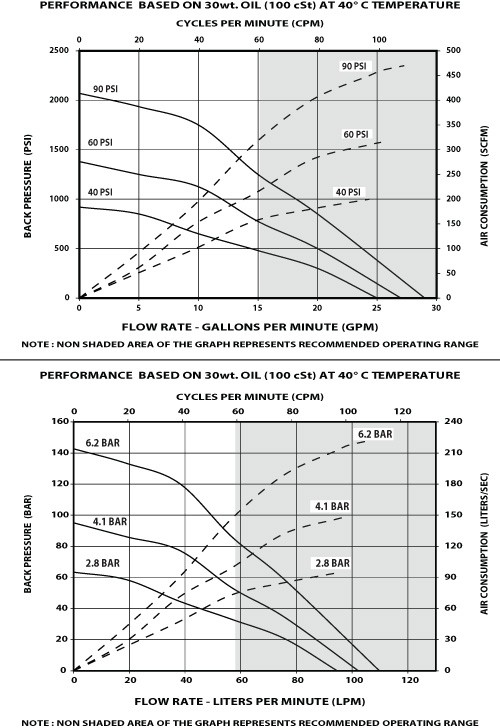

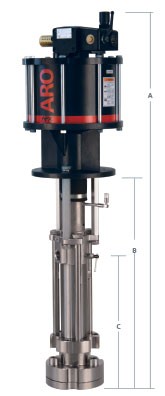

Dimensions

A* IN (MM) 53.52  (1256.26)
B in (mm) 30.44  (669.89)
C in (mm) 18.88   (376.2)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
