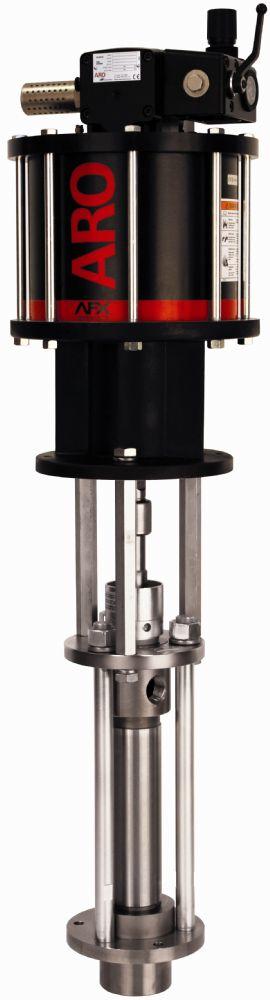

AF1045BXXXXXX

Features

  • 2-Ball Lower End Style
  • 45:1 Ratio
  • 10'' Air Motor
  • 6.27 GPM (23.7 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Model Material - Carbon Steel Nickel Plated

Packing Options

  • AF1045B11KK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE / Glass Filled PTFE - Lower end 66475-34D
  • AF1045B11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66475-R4D

Accessories

  • 67445-4 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor Mount
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637098-343
RATIO 45:1
Stroke 6” (15.24 cm)
Material Inlet 2” NPT(F)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 90 (2.1 - 6.2)
Fluid Pressure Range psi (bar) 1350 - 4050 (93.1 - 279.3)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 20.7 (339.2)
Cycles/gal (L) 11.2 (2.9)
Flow @ 60 Cycles gpm (L/min) 6.27 (23.7) (@70 Cycles)
Noise Level @ 60 psi dBA 89.8
Weight* lb (kg) 132 (59.9)
Container Suitability Remote Mounting

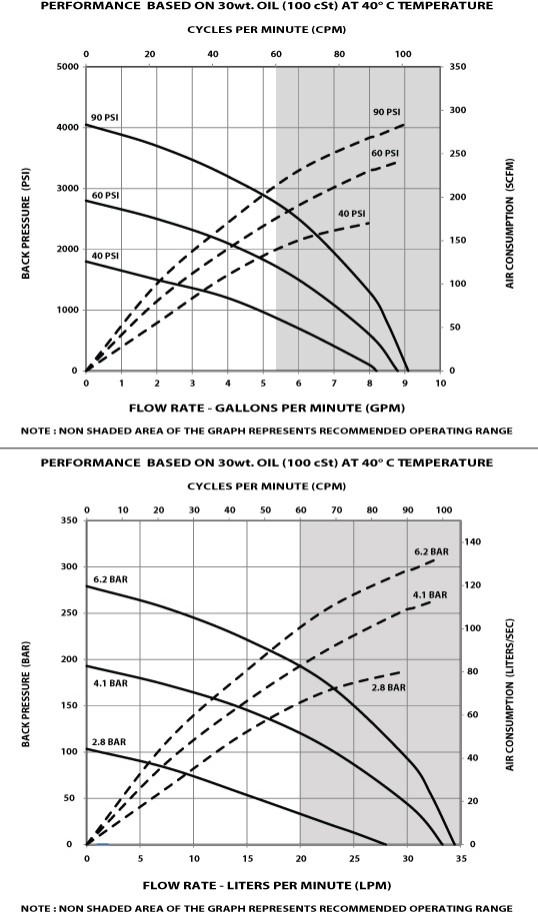

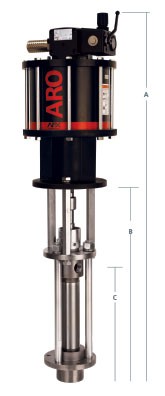

Dimensions

A* IN (MM) 50.24 (1276.15)
B in (mm) 27.19 (690.58)
C in (mm) 16.06 (408.00)

 *For models without ball valve regulator subtract 2.08 in (52.83 mm)
