Features
- 2-Ball Lower End Style
- 28:1 Ratio
- 8'' Air Motor
- 6.27 GPM (23.7 LPM) max flow
- Excellent for low- to medium viscosity materials up to 100,000 cPs.
Pump Casing Materials
- Lower Pump Material - Carbon Steel Nickel Plated
Packing Options
- AF0828B11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66475-R4D
Accessories
- 67445-3 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 65139 Floor Mount
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637098-R43
| RATIO | 28:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | 2” NPT(F) |
| Material Outlet | 1” NPT (F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 30 - 120 (2.1 - 8.3) |
| Fluid Pressure Range psi (bar) | 840 - 3360 (57.9 - 231.7) |
| Max Cycles/Minute | 70.0 |
| Displacement/Cycle cu in (cm3) | 20.7 (338.65) |
| Cycles/gal (L) | 11.2 (42.34) |
| Flow @ 60 Cycles gpm (L/min) | 6.27 (23.7) (@70 Cycles) |
| Noise Level @ 60 psi dBA | 86.8 |
| Weight* lb (kg) | 113 (51.3) |
| Container Suitability | Remote Mounting |

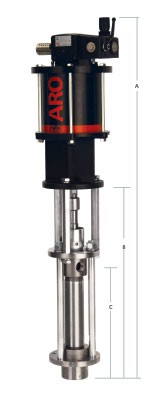

Dimensions
| A* IN (MM) | 50.24 (1276.15) |
|---|---|
| B in (mm) | 27.19 (690.58) |
| C in (mm) | 16.06 (408.00) |
For models without ball valve regulator subtract 2.08 in (52.83 mm)
