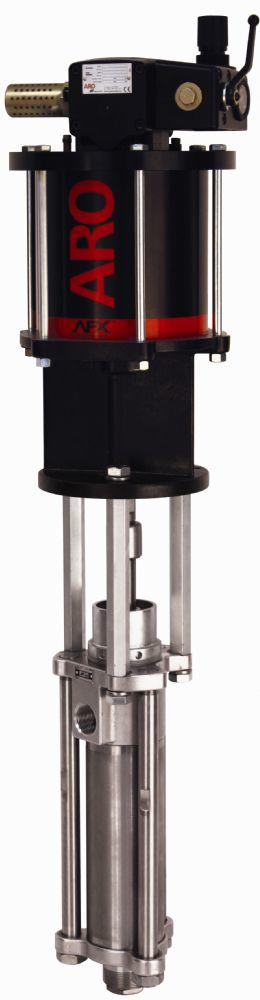

Features
- 2-Ball Lower End Style
- 10:1 Ratio
- 8'' Air Motor
- 15.6 GPM (58.9 LPM) max flow
- Excellent for low- to medium viscosity materials up to 100,000 cPs.
Materials of Construction
- Lower Pump Model Material - 300 Series / CF8M Stainless Steel
- Lower Pump Model Material - 15-5 Stainless Steel
Packing Options
- AF0810C11CC15 321 Stainless Steel w/Hard Chrome Plunger - Carbon-Graphite Filled PTFE / Carbon-Graphite Filled PTFE - Lower end 66942-K3F
- AF0810C11FF35 321 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66942-C6F
- AF0810C11KK35 321 Stainless Steel w/Hard Chrome Plunger - Mineral Filled PTFE / Mineral Filled PTFE - Lower end 66942-L6F
- AF0810C11GF35 321 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Mineral Filled PTFE (Staggered) / UHMW-PE - Lower end 66942-P6F
- AF0810F11FF36 15-5 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66941-C6D
- AF0810F11KK36 15-5 Stainless Steel w/Hard Chrome Plunger - Mineral Filled PTFE / Mineral Filled PTFE - Lower end 66941-L6D
- AF0810F11RK36 15-5 Stainless Steel w/Hard Chrome Plunger - Mineral Filled PTFE/UHMW-PE (Staggered) / Mineral Filled PTFE - Lower end 66941-R6D
Accessories
- 67445-3 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 67136 Floor/Follower Plate Adapter
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637211-K63 637211-C63 637211-L63 637211-P63 637211-R63
| RATIO | 10:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | 2” NPT(F) |
| Material Outlet | 1-1/4” NPT(F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 0 - 120 (0 - 8.3) |
| Fluid Pressure Range psi (bar) | 0 - 1200 (0 - 82.8) |
| Max Cycles/Minute | 59.9 (979.9) |
| Displacement/Cycle cu in (cm3) | 60.0 |
| Cycles/gal (L) | 3.9 (1.0) |
| Flow @ 60 Cycles gpm (L/min) | 15.6 (58.9) |
| Noise Level @ 60 psi dBA | 86.8 |
| Weight* lb (kg) | 102 (46.3) |
| Container Suitability | Remote Mounting |

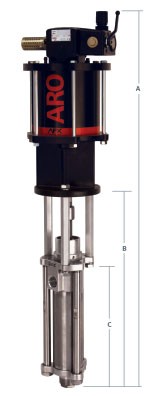

Dimensions
| A* IN (MM) | 50.24 (1276.15) |
|---|---|
| B in (mm) | 27.19 (690.58) |
| C in (mm) | 16.06 (408.00) |
*For models without ball valve regulator subtract 2.08 in (52.83 mm)
