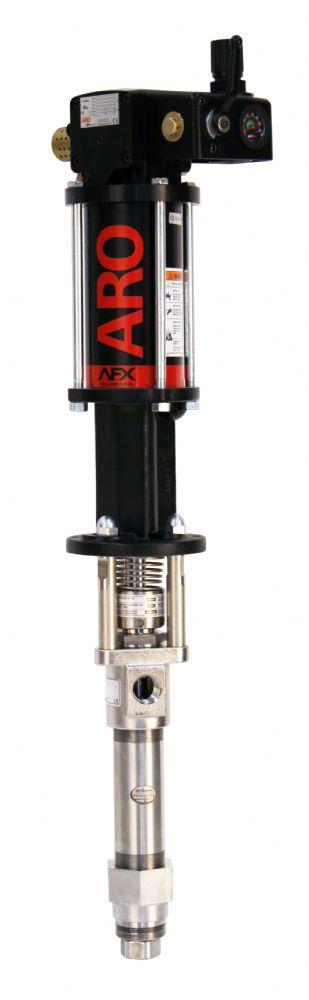

AF0430GXXXXXX

Features

  • 2-Ball Lower End Style
  • 30:1 Ratio
  • 4 1/4'' Air Motor
  • 1.3 GPM (4.9 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - 300 Series SS w/Tungsten Carbide Seat

Packages

  • AF0430G11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66302-C43
  • AF0430G11KK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE / Glass Filled PTFE - Lower end 66302-343
  • AF0430G11HH47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE/Leather (Staggered) - Lower end 66302-G43
  • AF0430G11GF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 66302-P43

Accessories

  • 67445-1 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67136 Floor/Follower Plate Adapter
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637307-C43 637307-343 637307-G43 637307-P43
RATIO 30:1
Stroke 6” (15.24 cm)
Material Inlet 1” NPT(F)
2” NPT(M)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 150 (2 - 10.3)
Fluid Pressure Range psi (bar) 900 - 4629 (62 - 319)
Max Cycles/Minute 60.0
Displacement/Cycle cu in (cm3) 5.5 (90.1)
Cycles/gal (L) 41.9 (11.0)
Flow @ 60 Cycles gpm (L/min) 1.3 (4.9)
Noise Level @ 60 psi dBA 86.5
Weight* lb (kg) 42.9 (19.5)
Container Suitability Remote Mounting

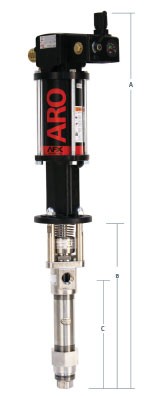

Dimensions

A* IN (MM) 42.18  (1071.47)
B in (mm) 18.91  (480.34)
C in (mm) 12.66  (321.59)

For models without ball valve regulator subtract 2.08 in (52.83 mm)
