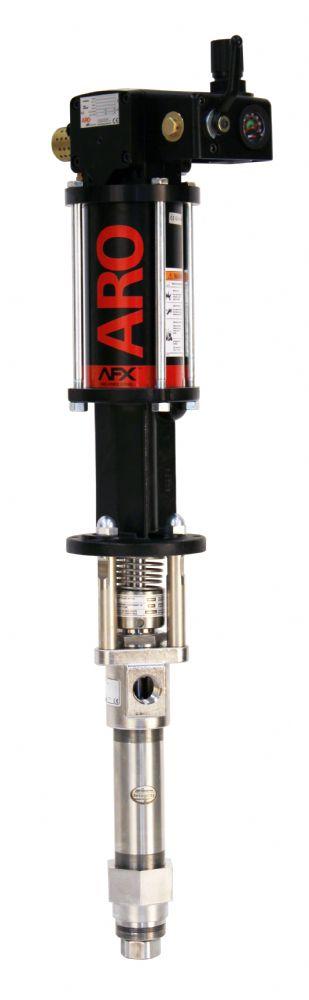

Features
- 2-Ball Lower End Style
- 22:1 Ratio
- 4 1/4'' Air Motor
- 1.9 GPM (7.2 LPM) max flow
- Excellent for low- to medium viscosity materials up to 100,000 cPs.
Pump Casing Materials
- Lower Pump Material - 300 Series SS w/Tungsten Carbide Seat
Packages
- AF0422G11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66301-C43
- AF0422G11KK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE / Glass Filled PTFE - Lower end 66301-343
- AF0422G11HH47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE/Leather (Staggered) - Lower end 66301-G43
- AF0422G11GF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 66301-P43
- AF0422G11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE 66301-R43
- AF0422G11RK48 17-4 Stainless Steel Ceramic Coated Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66301-R4B
Accessories
- 67445-1 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 67136 Floor/Follower Plate Adapter
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637306-C43 637306-343 637306-G43 637306-P43 637306-R43

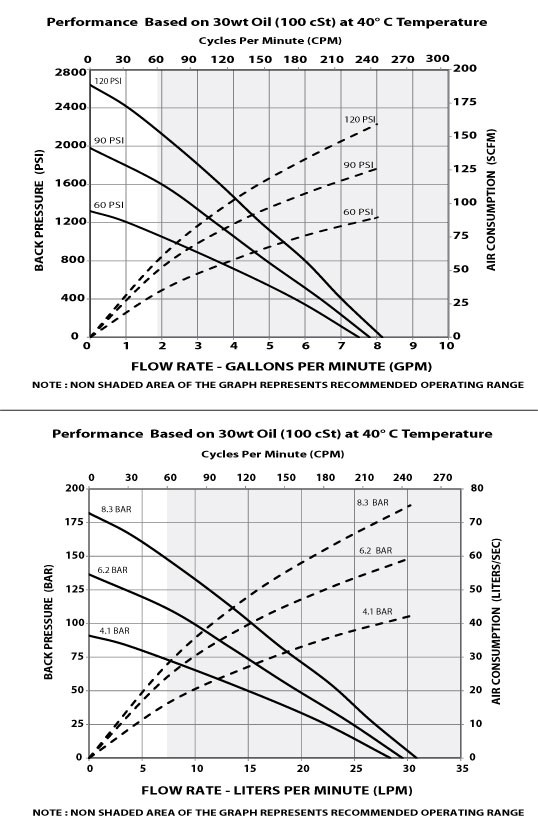

| RATIO | 11:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | 1” NPT(F) 2” NPT(M) |
| Material Outlet | 1” NPT(F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 30 - 150 (2 - 10.3) |
| Fluid Pressure Range psi (bar) | 660 - 3412 (46 - 235) |
| Max Cycles/Minute | 7.5 (122.9) |
| Displacement/Cycle cu in (cm3) | 60.0 |
| Cycles/gal (L) | 30.9 (8.1) |
| Flow @ 60 Cycles gpm (L/min) | 1.9 (7.2) |
| Noise Level @ 60 psi dBA | 86.5 |
| Weight* lb (kg) | 42.9 (19.5) |
| Container Suitability | Remote Mounting |

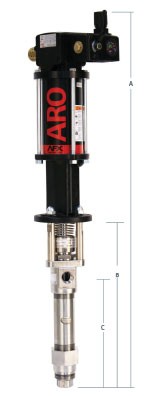

Dimensions
| A* IN (MM) | 42.18 (1071.47) |
|---|---|
| B in (mm) | 18.91 (480.34) |
| C in (mm) | 12.66 (321.59) |
*For models without ball valve regulator subtract 2.08 in (52.83 mm)
ENGINEERING OPERATION & MAINTENANCE MANUAL
