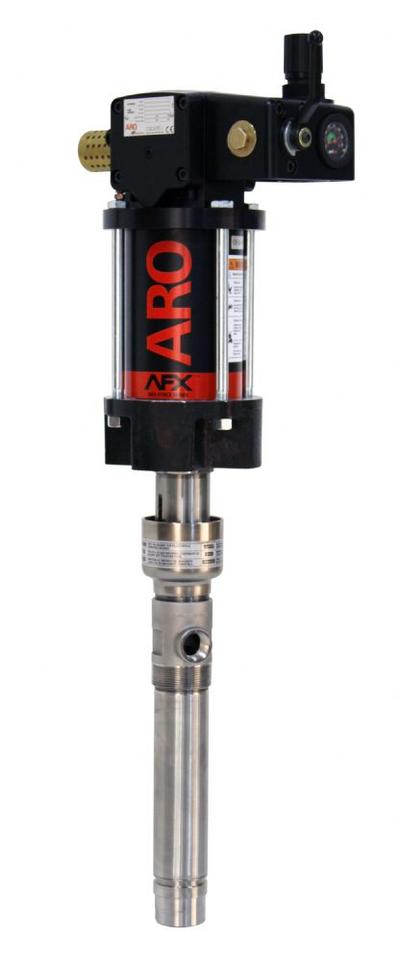

AF0409CXXXX2X

Features

  • 2-Ball Lower End Style
  • 9:1 Ratio
  • 4 1/4’‘ Air Motor
  • 2.9 GPM (10.8 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - 316 Stainless Steel

Packages

  • AF0409C11FF22 5 Gallon 316 Stainless Steel Plunger - UHMW-PE / UHMW-PE
  • AF0409C11FF29 5 Gallon 304 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE
  • AF0409C11SS22 5 Gallon 316 Stainless Steel, Ceramic Coated Tube - Virgin PTFE / Virgin PTFE
  • AF0409C11VF2E 5 Gallon 316 Stainless Steel, Ceramic Coated Tube - Viton / UHMW-PE
  • AF0409C11VF29 5 Gallon 304 Stainless Steel, Ceramic Coated Plunger - Viton / UHMW-PE
  • AF0409C51SS22 55 Gallon 316 Stainless Steel Plunger - Virgin PTFE / Virgin PTFE
  • AF0409C51FF22 55 Gallon 316 Stainless Steel UHMW-PE UHMW-PE

Accessories

  • 67445-1 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67136 Floor/Follower Plate Adapter
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 1875C11FF22 1875C11FF29 1875C11SS22 1875C11VF2E 1875C11VF29 1875C51SS22 1875C51FF22
  • K1875C11VF00 K1875C11FF00 K1875C11SS00
RATIO 9:1
Stroke 4” (10.2 cm)
Material Inlet 1-1/4” NPT(F)
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 150 (0 - 10.3)
Fluid Pressure Range psi (bar) 0 -1350 (0 - 93.1)
Max Cycles/Minute 60.0
Displacement/Cycle cu in (cm3) 11.0 (180.2)
Cycles/gal (L) 21 (5.5)
Flow @ 60 Cycles gpm (L/min) 2.9 (10.8)
Noise Level @ 60 psi dBA 89.2
Weight* lb (kg) 5 Gallon - 35 (15.9)
55 Gallon - 45 (20.4)

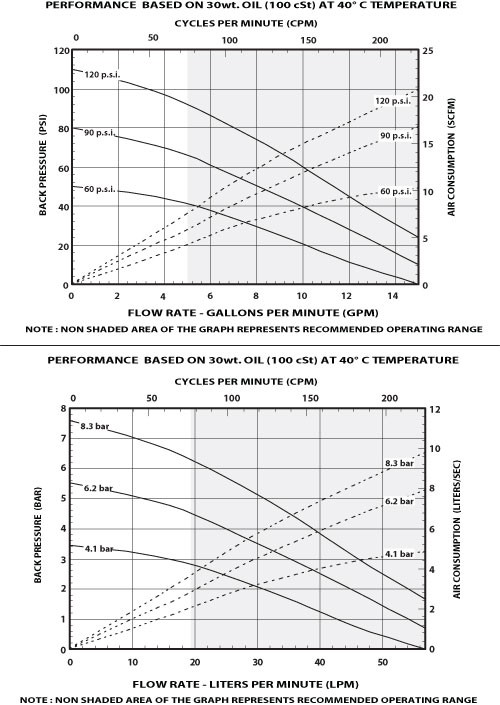

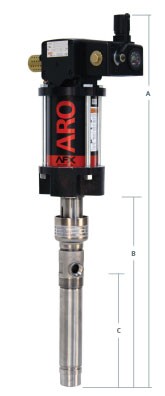

Dimensions - 5-Gallon Unit

A* IN (MM) 34.12 (866.55)
B in (mm) 17.78 (451.7)
C in (mm) 11(279.4)

Dimensions - 55-Gallon Unit

A* IN (MM) 57.46 (1459.48)
B in (mm) 41.12 (1044.55)
C in (mm) 34.34 (872.34)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
