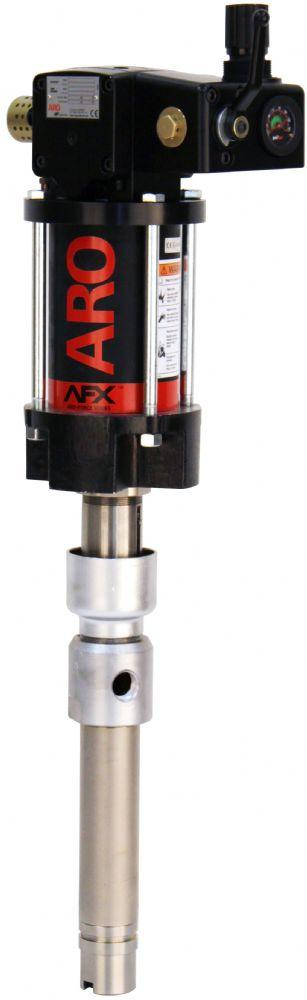

AF0409AX1XXXX

Features

  • 2-Ball Lower End Style
  • 9:1 Ratio
  • 4 1/4’‘ Air Motor
  • 2.8 GPM (10.5 LPM) max flow
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - Carbon Steel

Packages

  • AF0409A81KS24-02 Remote Mounting Carbon Steel Plunger w/ Hard Chrome - Glass Filled PTFE / Virgin PTFE
  • AF0409A51KS24-02 55 Gallon (400 lbs) Carbon Steel Plunger w/Hard Chrome - Glass Filled PTFE / Virgin PTFE
  • AF0409A51FF24-02 55 Gallon (400 lbs) Carbon Steel Plunger w/Hard Chrome - UHMW-PE / UHMW-PE
  • AF0409A81US24-02 Remote Mounting Carbon Steel Plunger w/Hard Chrome - Glass Filled PTFE/Leather (Staggered) / Virgin PTFE
  • AF0409A81HF24-02 Remote Mounting Carbon Steel Plunger w/Hard Chrome - UHMW-PE / UHMW-PE
  • AF0409A81FF24-02 Remote Mounting Carbon Steel Plunger w/Hard Chrome - UHMW-PE / UHMW-PE
  • AF0409A91LL2D 5 Gallon Carbon Steel Plunger - Leather / Leather

Accessories

  • 67445-1 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67136 Floor/Follower Plate Adapter
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 1875A81KS24 1875A51KS24 1875A51FF24 1875A81US24 1875A91LL2D 1875A81FF24 1875A81HF24
  • K1875A11KS24 K1875A11FF24 K1875A11US24 K1875A11HF24 K1875A91LL2D
RATIO 9:1
Stroke 4” (10.2 cm)
Material Inlet See Dimensions
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 150 (0 - 10.3)
Fluid Pressure Range psi (bar) 0 -1350 (0 - 93.1)
Max Cycles/Minute 60.0
Displacement/Cycle cu in (cm3) 11.0 (180.2)
Cycles/gal (L) 21 (5.5)
Flow @ 60 Cycles gpm (L/min) 2.8 (10.5)
Noise Level @ 60 psi dBA 80.0
Weight* lb (kg) 55 Gallon Unit: 49 (22.2)
Remote Mount: 35 (15.8)



Specifications - 55 Gallon Unit

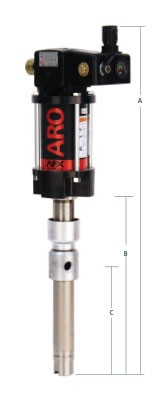

A* IN (MM) 61.74 (1568.25)
B in (mm) 38.53 (978.71)
Material Inlet Immersed -

Specifications - Remote Mount Unit

A* IN (MM) 35.21 (894.33)
B in (mm) 12.00 (304.80)
Material Inlet 1-1/2” NPT -
