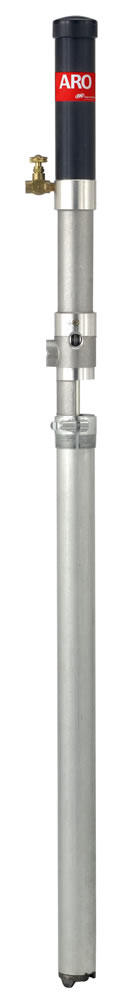

61204X-X Basic Pump

Features

  • 2-Ball Lower End Style
  • 1:1 RATIO
  • 2” AIR MOTOR
  • 9 GPM (34.1 LPM) MAX FLOW
  • Excellent for low- to medium viscosity materials up to 100,000 cPs.

Pump Casing Materials

  • Lower Pump Material - Carbon Steel

Package Description

  • The ARO 2" differential 1:1 ratio transfer pumps are intended to be used primarily for oil transfer and delivery systems.It is best to use this pump with low - medium viscosity fluids. It uses carbon steel and other materials which make it compatible with most petroleum based lubrication products.

Packing Options

  • Nitrile
  • P.T.F.E.
RATIO 1:1
Stroke 2”
Material Inlet Immersed
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Fluid Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Max Cycles/Minute 75.0
Displacement/Cycle cu in (cm3) 18.8 (308.0)
Cycles/gal (L) 12.3 (3.3)
Flow @ 75 Cycles gpm (L/min) 90 (3.0)
Noise Level @ 60 psi dBA 9.0 (34.1)
Weight* lb (kg) 612041-1, 612401-3: 13 (5.9)
612402-1: 14 (6.4)



Dimensions

DIMENSIONS A IN (MM) B IN (MM)
612041-X 54 (1371.6) 34.625 (879.5)
612042-X 64.25 (1631.9)  44.875 (1139.8)

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: 61204X-X Basic Pump
