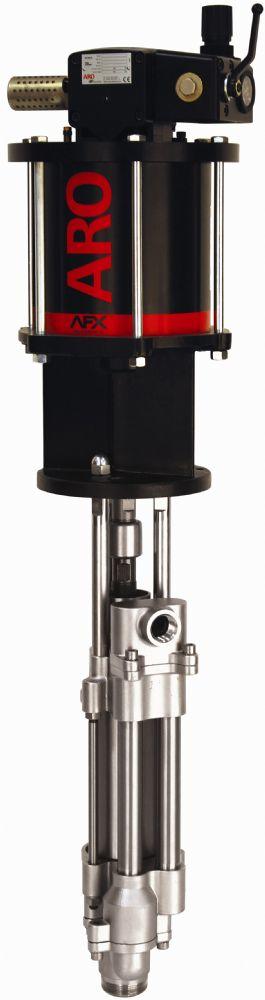

AF0807MXXXXXX

Features

  • 4-Ball Lower End Style
  • 7:1 Ratio
  • 8'' Air Motor
  • 23.5 GPM (88.8 LPM) max flow
  • Designed for high volume transfer of low and medium viscosity fluids up to 12,500 cPs

Pump Casing Materials

  • Lower Pump Model Material - 300 Series/CF8M Stainless Steel

Packing Options

  • AF0807M11FF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE - Lower end 67200-C4G
  • AF0807M11KS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE / Virgin PTFE - Lower end 67200-74G
  • AF0807M11RS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Virgin PTFE - Lower end 67200-R4G

Accessories

  • 67445-3 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67187-1 Mounting Post
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637317-C4G 637317-74G 637317-R4G

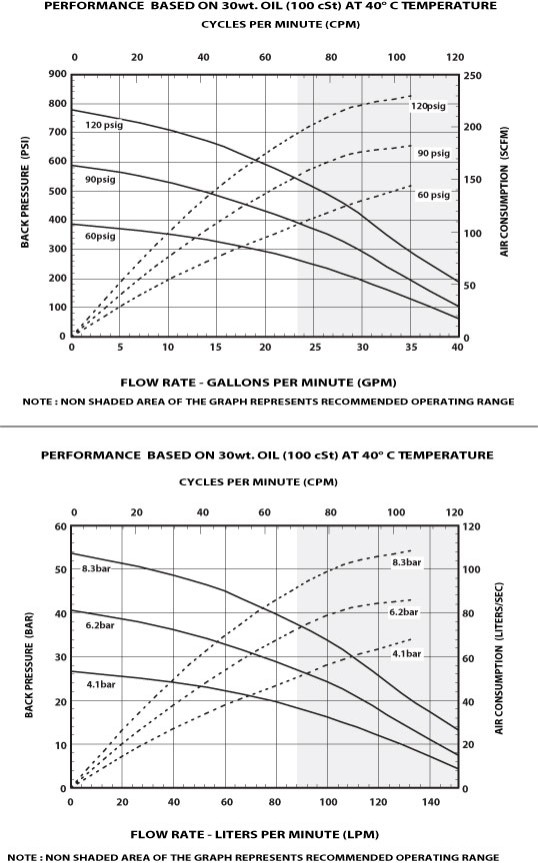

RATIO 7:1
Stroke 6” (15.24 cm)
Material Inlet 1-1/2” NPT(F)
2” NPT(M)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 120 (2.1 - 8.3)
Fluid Pressure Range psi (bar) 210 - 1009 (14.5 - 69.6)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 77.5 (1269.9)
Cycles/gal (L) 2.9 (0.7)
Flow @ 60 Cycles gpm (L/min) 23.5 (88.8)
Noise Level @ 60 psi dBA 86.8
Weight* lb (kg) 96 (43.5)
Container Suitability Remote Mounting



Dimensions

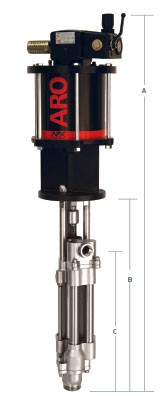

A 1 IN (MM) 48.73 (1237.72)
B in (mm) 25.67 (652.12)
C in (mm) 19.54 (496.32)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)



ENGINEERING OPERATION & MAINTENANCE MANUAL
