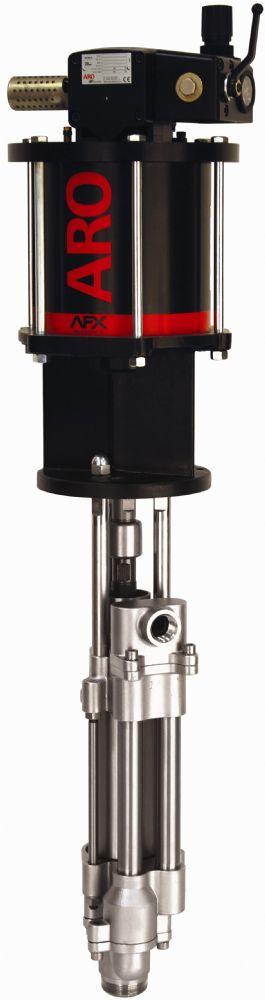

AF0805MXXXXXX

Features

  • 4-Ball Lower End Style
  • 5:1 Ratio
  • 8'' Air Motor
  • 32.8 GPM (124 LPM) max flow
  • Designed for high volume transfer of low and medium viscosity fluids up to 12,500 cPs

Pump Casing Materials

  • Lower Pump Model Material - 300 Series/CF8M Stainless Steel

Packing Options

  • AF0805M11FF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE - Lower end 67201-C4G
  • AF0805M11GF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 67201-P4G

Accessories

  • 67445-3 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67187-1 Mounting Post
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637318-C4G 637318-P4G

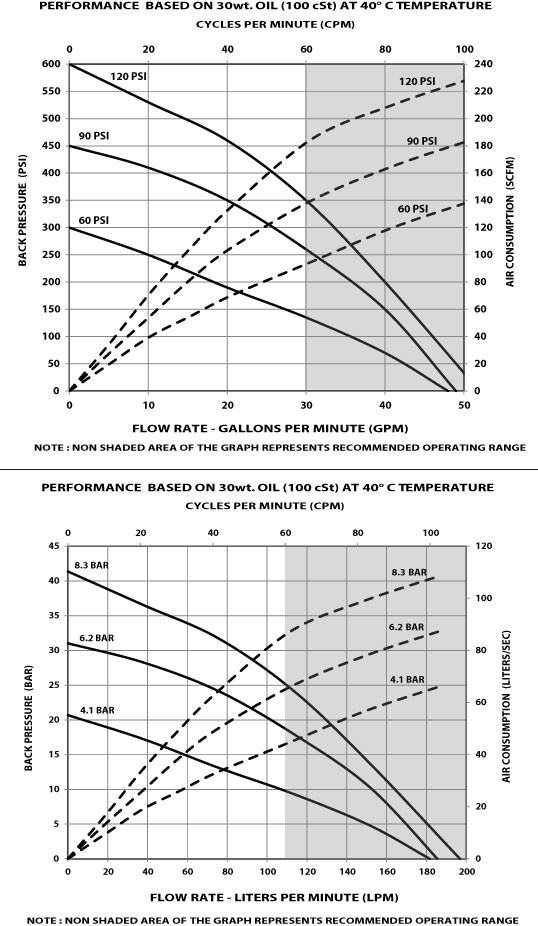

RATIO 5:1
Stroke 6” (15.24 cm)
Material Inlet 1-1/2” NPT(F)
2” NPT(M)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 120 (2.1 - 8.3)
Fluid Pressure Range psi (bar) 150 - 702 (10.3 - 48.4)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 108.1 (1771.4)
Cycles/gal (L) 2.1 (0.5)
Flow @ 60 Cycles gpm (L/min) 32.8 (124.0)
Noise Level @ 60 psi dBA 86.8
Weight* lb (kg) 96 (43.5)
Container Suitability Remote Mounting

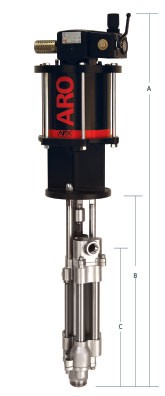

Dimensions

A 1 IN (MM)  48.73 (1237.72)
B in (mm)  25.67 (652.12)
C in (mm)  19.54 (496.32)

For models without ball valve regulator subtract 2.08 in (52.83 mm)



ENGINEERING OPERATION & MAINTENANCE MANUAL
