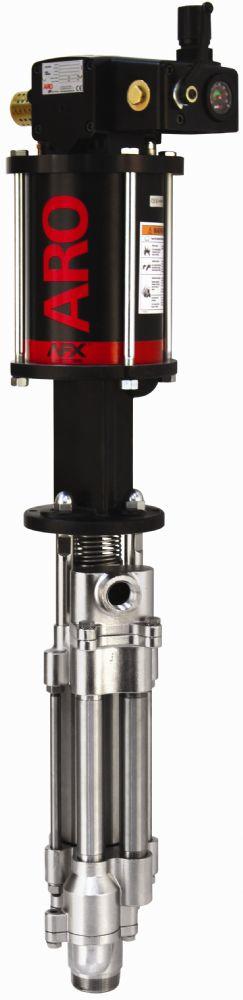

AF0603MXXXXXX

Features

  • 4-Ball Lower End Style
  • 3:1 Ratio
  • 6'' Air Motor
  • 29.3 GPM (110.8 LPM) max flow
  • Designed for high volume transfer of low and medium viscosity fluids up to 12,500 cPs

Pump Casing Materials

  • Lower Pump Model Material - 300 Series/CF8M Stainless Steel

Packing Options

  • AF0603M11FF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE - Lower end 67201-C4B
  • AF0603M11KS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE / Virgin PTFE - Lower end 67201-74B
  • AF0603M11HF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE - Lower end 67201-F4B
  • AF0603M11RS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Virgin PTFE - Lower end 67201-R4B
  • AF0603M11GF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 67201-P4B

Accessories

  • 67445-2 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67187-1 Mounting Post
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637318-C4B 67318-74B 67318-F4B 67318-R4B 67318-P4B
RATIO 3:1
Stroke 6” (15.24 cm)
Material Inlet 1-1/2” NPT(F)
2” NPT(M)
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 150 (2.1 - 10.3)
Fluid Pressure Range psi (bar) 90 - 457 (6.2 - 31.5)
Max Cycles/Minute 60.0
Displacement/Cycle cu in (cm3) 112.7 (1846.8)
Cycles/gal (L) 2.05 (0.54)
Flow @ 60 Cycles gpm (L/min) 29.3 (110.8)
Noise Level @ 60 psi dBA 84.7
Weight* lb (kg) 73.25 (33.2)
Container Suitability Remote Mounting

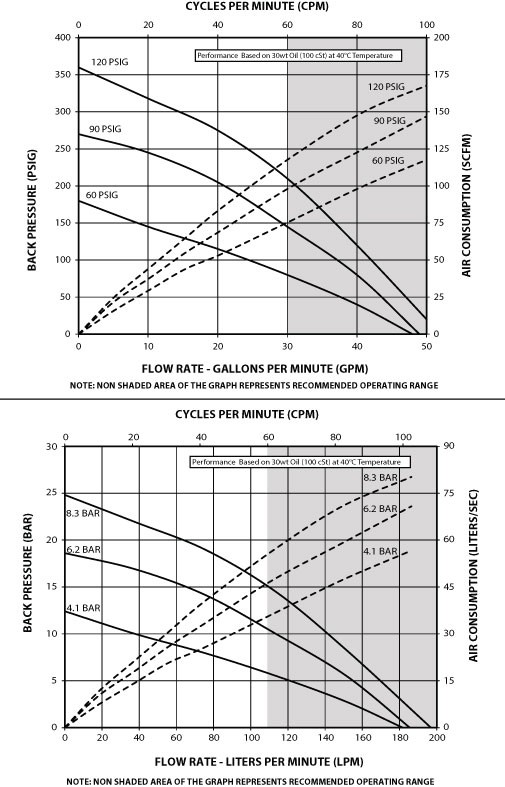

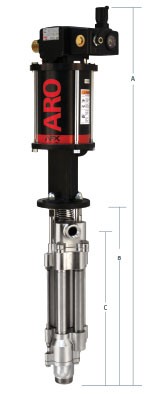

Dimensions

A* IN (MM)  45.27 (1149.76)
B in (mm)  21.99 (558.62)
C in (mm)  19.54 (496.32)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
