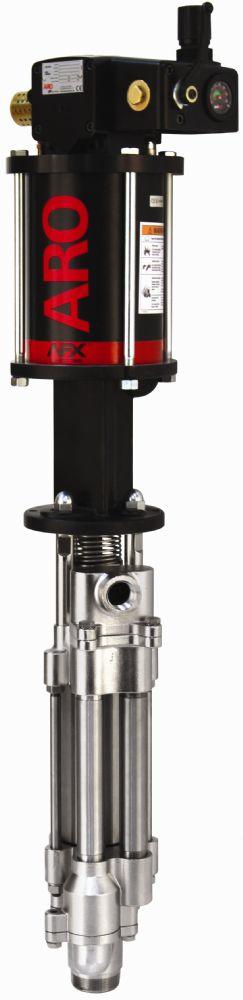

AF0402MXXXXXX

Features

  • 4-Ball Lower End Style
  • 2:1 Ratio
  • 4 1/4'' Air Motor
  • 21.3 GPM (80.6 LPM) max flow
  • Designed for high volume transfer of low and medium viscosity fluids up to 12,500 cPs

Pump Casing Materials

  • Lower Pump Model Material - 300 Series/CF8M Stainless Steel

Packing Options

  • AF0402M11HF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE - Lower end 67200-F4B
  • AF0402M11RS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE/ UHMW-PE (Staggered) / Virgin PTFE - Lower end 67200-R4B
  • AF0402M11KS48 17-4 Stainless Steel, Ceramic Coated Plunger - Glass Filled PTFE / Virgin PTFE - Lower end 67200-74B
  • AF0402M11FF48 17-4 Stainless Steel, Ceramic Coated Plunger - UHMW-PE / UHMW-PE - Lower end 67200-C4B

Accessories

  • 67445-1 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 67187-1 Mounting Post
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637317-F4B 637317-74B 637317-R4B 637317-C4B

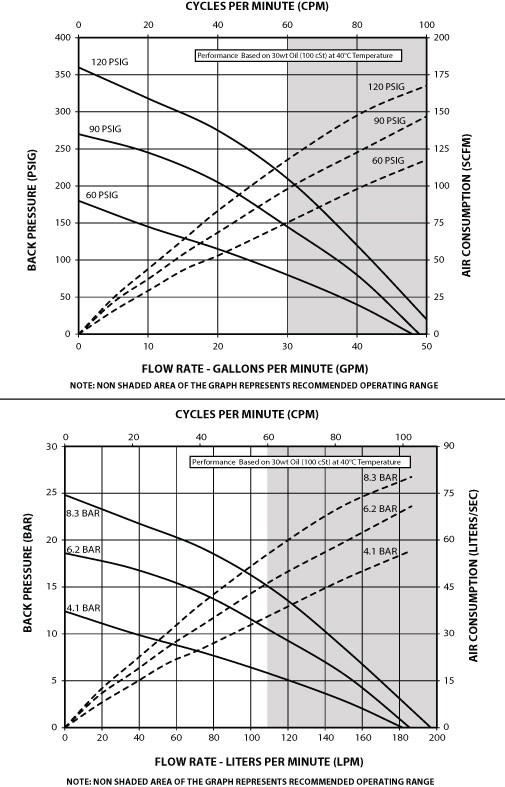

RATIO 2:1
Stroke 2”
Material Inlet Immersed
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Fluid Pressure Range psi (bar) 0 – 150 (0 – 10.3)
Max Cycles/Minute 75.0
Displacement/Cycle cu in (cm3) 18.8 (308.0)
Cycles/gal (L) 12.3 (3.3)
Flow @ 60 Cycles gpm (L/min) 90 (3.0) @75 Cycles
Noise Level @ 60 psi dBA 9.0 (34.1)
Weight* lb (kg) 612041-1, 612401-3 13 (5.9)
612402-1 14 (6.4)

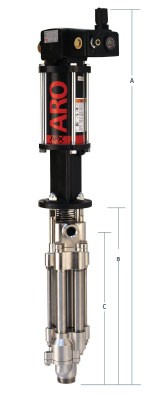

Dimensions

A* IN (MM)  45.27 (1149.76)
B in (mm)  21.99 (558.62)
C in (mm)  19.54 (496.32)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)

ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: AF0402MXXXXXX
