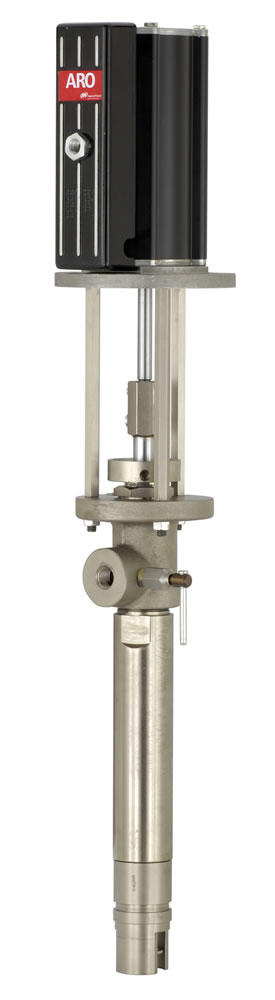

NM2322F-XX-P4X

Features

  • Chop-Check Lower End Style
  • 22:1 Ratio
  • 3'' Air Motor
  • 0.99 GPM (3.7 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000
RATIO 22:1
Stroke 3” (7.62 cm)
Material Inlet Follower Plate Mounted
Material Outlet 1/2” NPT(F)
Air Inlet (female) 1/4” NPT(F)
Air Inlet Pressure Range psi (bar) 0 -150 (0 - 10.3)
Fluid Pressure Range psi (bar) 0 - 3,300 (0 - 277.6)
Max Cycles/Minute 120.0
Displacement/Cycle cu in (cm3) 1.9 (31.1)
Cycles/gal (L) 121.6 (32.1)
Flow @ 60 Cycles gpm (L/min) .5 (1.9)
Noise Level @ 100 psi dBA 85.0
Weight* lb (kg) NM2322E-11-P43 29 (13.2)
NM2322E-11-P48 29 (13.2)
NM2322E-11-P71 33 (15.0)



ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: NM2322F-XX-P4X
