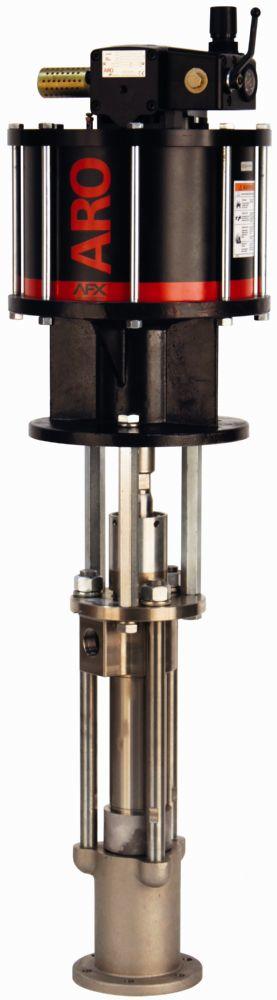

Features
- Chop-Check Lower End Style
- 65:1 Ratio
- 12'' Air Motor
- 6 GPM (22.9 LPM) max flow
- Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000
Pump Casing Materials
- Lower Pump Material - Carbon Steel, Nickel-Plated
Packing Options
- AF1265S11PF17 17-4 Stainless Steel w/Hard Chrome Plunger - Polyurethane / UHMW-PE - Lower end 67300-J3D
- AF1265S11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 67300-C4D
Accessories
- 67445-5 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 65139 Floor Mount
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637348-J3D 637348-C4D
| RATIO | 65:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | Flange Mount |
| Material Outlet | 1-1/4” NPT(F) |
| Air Inlet (female) | 3/4” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 30 - 90 (2.1 - 6.2) |
| Fluid Pressure Range psi (bar) | 1950 - 5850 (134.5 - 403.4) |
| Max Cycles/Minute | 70.0 |
| Displacement/Cycle cu in (cm3) | 20.0 (327.8) |
| Cycles/gal (L) | 11.5 (3.0) |
| Flow @ 60 Cycles gpm (L/min) | 6.0 (22.9) (@70 Cycles) |
| Noise Level @ 60 psi dBA | 93.0 |
| Weight* lb (kg) | 165 (74.8) |
| Container Suitability | Remote Mounting |

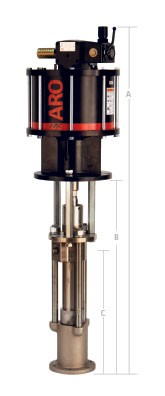

Dimensions
| A* IN (MM) | 53.46 (1357.88) |
|---|---|
| B in (mm) | 30.38 (771.65) |
| C in (mm) | 19.25 (488.95) |
*For models without ball valve regulator subtract 2.08 in (52.83 mm)
