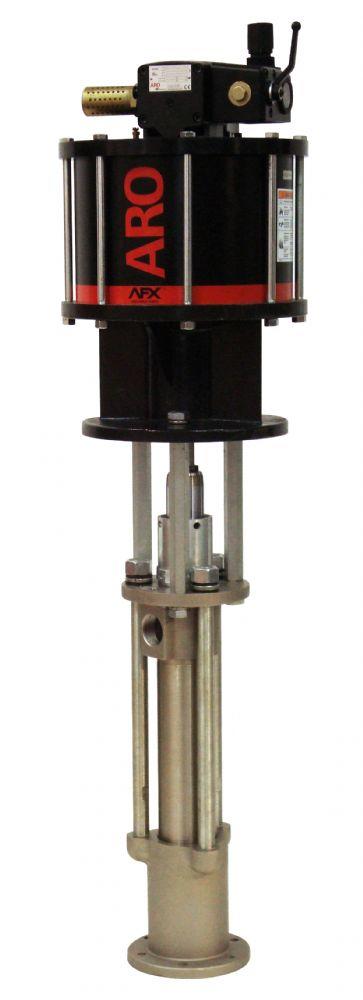

AF1230SXXXXXX

Features

  • Chop-Check Lower End Style
  • 30:1 Ratio
  • 12'' Air Motor
  • 12.2 GPM (46.3 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Pump Casing Materials

  • Lower Pump Material - Carbon Steel, Nickel-Plated

Packing Options

  • AF1265S11PF17 17-4 Stainless Steel w/Hard Chrome Plunger - Polyurethane / UHMW-PE - Lower end 67300-J3D
  • AF1265S11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/ UHMW-PE - Lower end 67300-C4D

Accessories

  • 67445-5 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor Mount
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637348-J3D 637348-C4D
RATIO 30:1
Stroke 6” (15.24 cm)
Material Inlet Bolted Flange
Material Outlet 1-1/2” NPT(F)
Air Inlet (female) 3/4” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 90 (2.1 - 6.2)

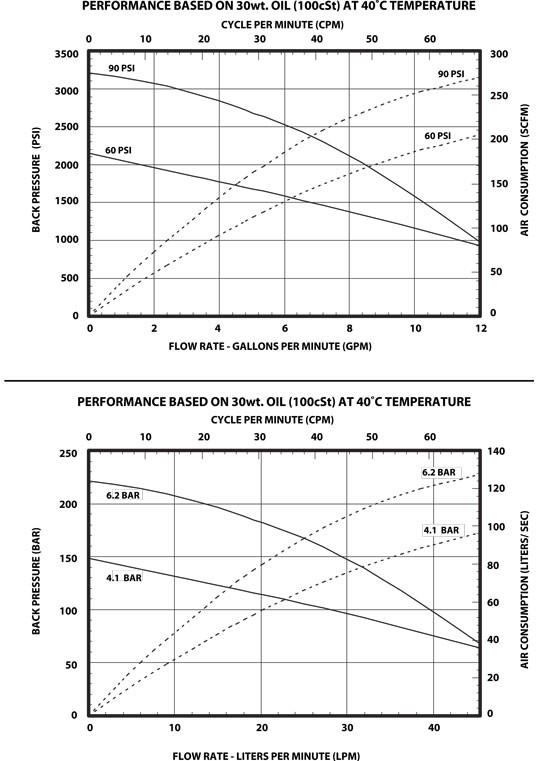

Fluid Pressure Range psi (bar) 900 - 3250 (62.1 - 224.1)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 40.4 (662.0)
Cycles/gal (L) 5.7 (1.5)
Flow @ 60 Cycles gpm (L/min) 12.2 (46.3) (@70 Cycles)
Noise Level @ 60 psi dBA 93.0
Weight* lb (kg) 78 (35.42)
Container Suitability Remote Mounting

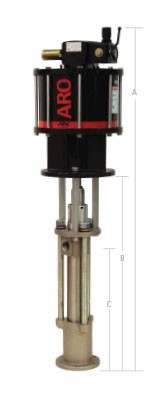

Dimensions

A 1 IN (MM)  54.43 (1382.47)
B in (mm)  31.34 (796.11)
C in (mm)  19.94 (506.40)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
