Features
- Chop-Check Lower End Style
- 44:1 Ratio
- 8'' Air Motor
- 3.8 GPM (14.3 LPM) max flow
- Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000
Pump Casing Materials
- Lower Pump Material - Carbon Steel, Nickel-Plated
Packing Options
- AF0844S11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66243-C4D-B
- AF0844S11HH47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE/Leather (Staggered) - Lower end 66243-G4D-B
- AF0844S11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66243-R4D-B
Accessories
- 67445-3 Muffler Kit
- 66334-B Wet-Sol Packing Lubricant
- 23644-400 ARO-Stop Valve
- 65139 Floor Mount
- 67442 Ball Valve Regulator
- 637489 Universal Air Motor Service Kit
Repair Kits
- 637071-C4D-B 637071-G4D-B 637071-R4D-B
| RATIO | 44:1 |
|---|---|
| Stroke | 6” (15.24 cm) |
| Material Inlet | Flange Mount |
| Material Outlet | 1” NPT(F) |
| Air Inlet (female) | 1/2” NPT(F) |
| Air Inlet Pressure Range psi (bar) | 30 - 120 (2.1 - 8.3) |
| Fluid Pressure Range psi (bar) | 1320 - 5964 (91.0 - 411.3) |
| Max Cycles/Minute | 70.0 |
| Displacement/Cycle cu in (cm3) | 12.5 (204.8) |
| Cycles/gal (L) | 18.5 (4.8) |
| Flow @ 60 Cycles gpm (L/min) | 3.8 (14.3) |
| Noise Level @ 60 psi dBA | 86.8 |
| Weight* lb (kg) | 165 (74.8) |
| Container Suitability | Remote Mounting |

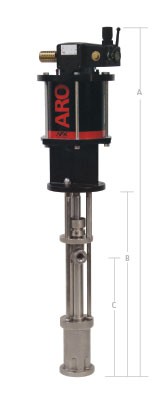

Dimensions
| A 1 IN (MM) | 50.60 (1285.32) |
|---|---|
| B in (mm) | 27.55 (699.72) |
| C in (mm) | 17.74 (450.49) |
*For models without ball valve regulator subtract 2.08 in (52.83 mm)
