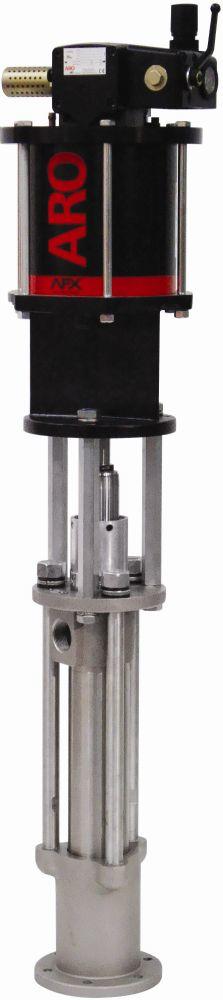

AF0813SXXXXXX

Features

  • Chop-Check Lower End Style
  • 13:1 Ratio
  • 8'' Air Motor
  • 12.2 GPM (46.3 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Pump Casing Materials

  • Lower Pump Material - Carbon Steel, Nickel-Plated

Packing Options

  • AF0813S11FF44 Carbon Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66236-C4E-B
  • AF0813S11GF44 Carbon Steel w/Hard Chrome Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 66236-P4E-B
  • AF0813S11HF44 Carbon Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE - Lower end 66236-F4E-B
  • AF0813S11PF14 Carbon Steel w/Hard Chrome Plunger - Polyurethane / UHMW-PE - Lower end 66236-J3E-B

Accessories

  • 67445-3 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor Mount
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637128-P44-B 637128-C44-B 637128-F44-B 637128-J34-B

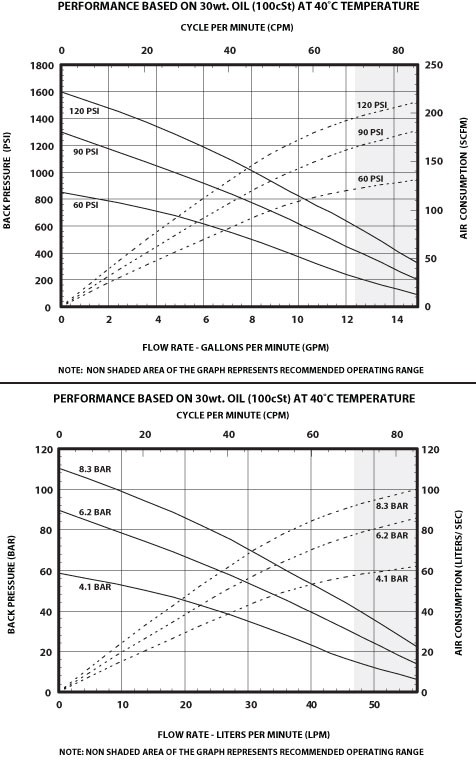

RATIO 13:1
Stroke 6” (15.24 cm)
Material Inlet Flange Mount
Material Outlet 1-1/2” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 30 - 120 (2.1 - 8.3)
Fluid Pressure Range psi (bar) 390 - 1900 (26.9 - 131.0)
Max Cycles/Minute 70.0
Displacement/Cycle cu in (cm3) 40.4 (662.0)
Cycles/gal (L) 5.7 (1.5)
Flow @ 60 Cycles gpm (L/min) 12.2 (46.3) (@70 Cycles)
Noise Level @ 60 psi dBA 86.8
Weight* lb (kg) 125.5 (56.9)
Container Suitability Remote Mounting

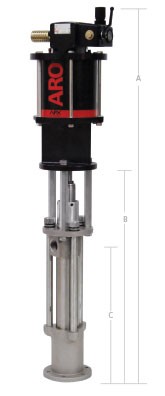

Dimensions

A 1 IN (MM)  54.40 (1381.71)
B in (mm)  31.34 (796.11)
C in (mm)  19.94 (506.40)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
