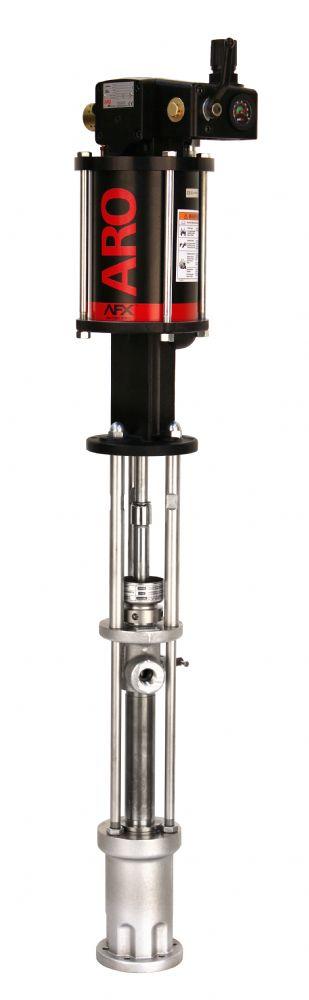

AF0665SXXXXXX

Features

  • Chop-Check Lower End Style
  • 65:1 Ratio
  • 6'' Air Motor
  • 1.3 GPM (5.1 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Pump Casing Materials

  • Lower Pump Material - Carbon Steel, Nickel-Plated

Packing Options

  • AF0665S11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 67348-C43
  • AF0665S11GF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Mineral Filled PTFE (Staggered) / UHMW-PE - Lower end 67348-P43

Accessories

  • 67445-2 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor Mount
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

Repair Kits

  • 637464-P43 637464-C43
RATIO 65:1
Stroke 6” (15.24 cm)
Material Inlet Flange Mount
Material Outlet 3/4” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 115 (0 - 7.9)
Fluid Pressure Range psi (bar) 0 - 7475 (0 - 515.5)
Max Cycles/Minute 60.0
Displacement/Cycle cu in (cm3) 5.2 (84.6)
Cycles/gal (L) 44.8 (11.9)
Flow @ 60 Cycles gpm (L/min) 1.3 (5.1)
Noise Level @ 60 psi dBA 84.7
Weight* lb (kg) 67 (30.4)
Container Suitability Remote Mounting

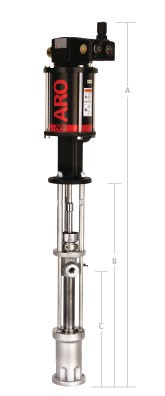

Dimensions

A 1 IN (MM)  54.01  (1371.83)
B in (mm)  30.74  (780.69)
C in (mm)  17.74  (450.49)

*For models without ball valve regulator subtract 2.08 in (52.83 mm)
