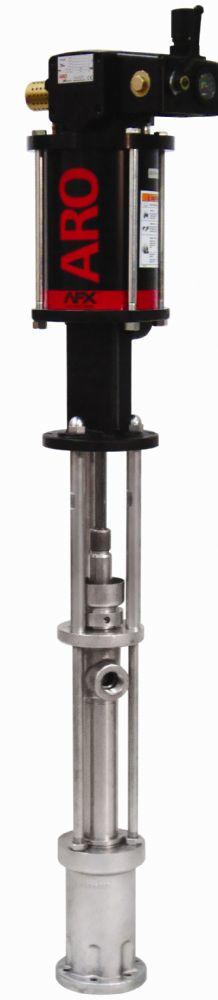

AF0646SXXXXXX

Features

  • Chop-Check Lower End Style
  • 46:1 Ratio
  • 6'' Air Motor
  • 1.8 GPM (6.9 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Pump Casing Materials

  • Lower Pump Material - Carbon Steel, Nickel-Plated

Packing Options

  • AF0646S11FF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE / UHMW-PE - Lower end 66266-C43-B
  • AF0646S11GF47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Glass Filled PTFE (Staggered) / UHMW-PE - Lower end 66266-P43-B
  • AF0646S11KK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE / Glass Filled PTFE - Lower end 66266-343-B
  • AF0646S11HH47 17-4 Stainless Steel w/Hard Chrome Plunger - UHMW-PE/Leather (Staggered) / UHMW-PE/Leather (Staggered) - Lower end 66266-G43-B
  • AF0646S11RK47 17-4 Stainless Steel w/Hard Chrome Plunger - Glass Filled PTFE/UHMW-PE (Staggered) / Glass Filled PTFE - Lower end 66266-R43-B

Follower Plate Options

  • 637074-R43-B 637074-G43-B 637074-343-B 637074-P43-B 637074-C43-B

Accessories

  • 67445-2 Muffler Kit
  • 66334-B Wet-Sol Packing Lubricant
  • 23644-400 ARO-Stop Valve
  • 65139 Floor Mount
  • 67442 Ball Valve Regulator
  • 637489 Universal Air Motor Service Kit

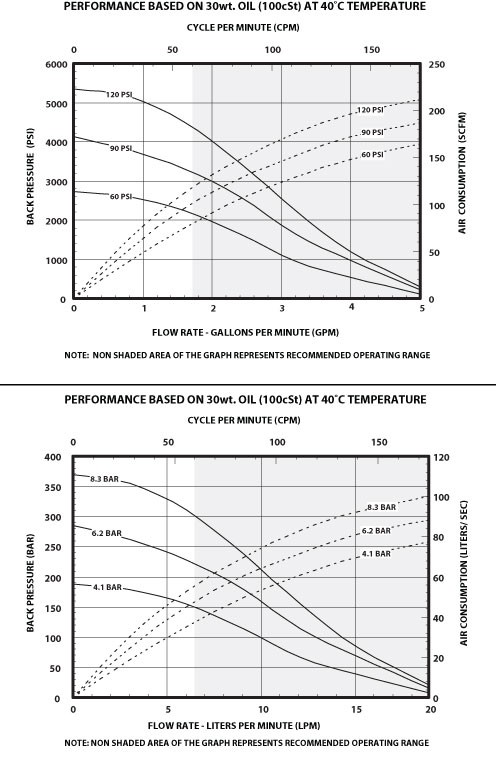

Pump Specifications
Ratio 46:1
Stroke 6” (15.24 cm)
Material Inlet Flange Mount
Material Outlet 1” NPT(F)
Air Inlet (female) 1/2” NPT(F)
Air Inlet Pressure Range psi (bar) 0 - 150 (0 - 10.3)
Fluid Pressure Range psi (bar) 0 - 7485 (0 - 516.2)
Max Cycles/Minute 60
Displacement/Cycle cu in (cm3) 6.97 (113)
Cycles/gal (L) 33.1 (8.8)
Flow @ 60 Cycles gpm (L/min) 1.8 (6.9)
Noise Level @ 60 psi dBA 84.7
Weight* lb (kg) 67 (30.4)
Container Suitability Remote Mounting

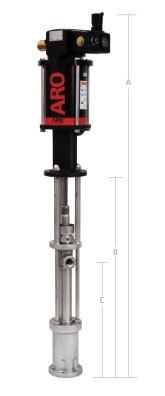

Dimensions

1 in (mm)

54.01  (1371.83)

B in (mm)

30.74  (780.69)

C in (mm)

17.74  (450.49)

1 For models without ball valve regulator subtract 2.08 in (52.83 mm)

Pump Model** Plunger Material Upper Packings Lower Packings Lower Pump Model Pump Service Kit
Lower Pump Model Material - Carbon Steel, Nickel-Plated

AF0646S11FF47

17-4 Stainless Steel w/Hard Chrome

UHMW-PE

UHMW-PE

66266-C43-B

637074-C43-B

AF0646S11GF47

17-4 Stainless Steel w/Hard Chrome

UHMW-PE/Glass Filled PTFE (Staggered)

UHMW-PE

66266-P43-B

637074-P43-B

AF0646S11KK47

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE

Glass Filled PTFE

66266-343-B

637074-343-B

AF0646S11HH47

17-4 Stainless Steel w/Hard Chrome

UHMW-PE/Leather (Staggered)

UHMW-PE/Leather (Staggered)

66266-G43-B

637074-G43-B

AF0646S11RK47

17-4 Stainless Steel w/Hard Chrome

Glass Filled PTFE/UHMW-PE (Staggered)

Glass Filled PTFE

66266-R43-B

637074-R43-B

**Add “-1” to Model No. for Ball Valve Regulator
