FM0646S11XXXXXXX

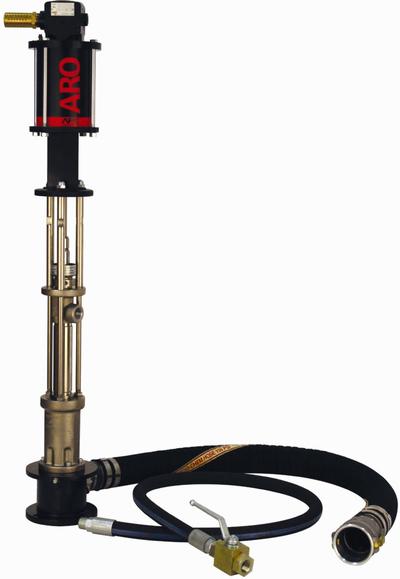

Ideal for fluid transfer from tanks and piping systems, pumps come with a floor-mountable stand to connect to piping.

Features

  • Chop Check Lower End Style
  • 46:1 Ratio
  • 6'' Air Motor
  • 1.8 GPM (6.9 LPM) max flow
  • Capable of moving medium to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cPs

Packages

  • FM0646S11GF47001 - Floor Mount - AF0646S11GF47-1
  • SP0646S21FF47E32 - 5 Gallon Single Post Ram - AF0646S11FF47
  • TP0646S21FF47E32 - 5 Gallon Two Post Ram - AF0646S11FF47
  • TP0646S51FF47AA2 - 55 Gallon Two Post Ram - AF0646S11FF47
  • TP0646S51GF47AA2 - 55 Gallon Two Post Ram - AF0646S11GF47
  • TP0646S51KK47AA2 - 55 Gallon Two Post Ram - AF0646S11KK47
  • TP0646S51KK47TA2 - 55 Gallon Two Post Ram - AF0646S11KK47
  • TP0646S51HH47AA2 - 55 Gallon Two Post Ram - AF0646S11HH47
  • TP0646S51RK47AA2 - 55 Gallon Two Post Ram - AF0646S11RK47

Package

  • Model No. - FM0646S11GF47001
  • Package Type - Floor Mount
  • Pump Model - AF0646S11GF47-1
  • Floor Mount Kit - 65138
  • Ball Valve - 67073
  • Material Supply Hose - 628088-7
  • Material Hose w/Fittings - 628089-6

Follower Plate Options

  • 67342-1 Single Lip, Polyurethane/Urethane - Carbon Steel, Electroless Nickel Coating
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516-6 Double Lip, Polyurethane - Aluminum w/PTFE Coating

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66354-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637465 5 Gallon Single Post Ram Repair Kit
  • 637466 5 Gallon Two Post Ram Repair Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: FM0646S11XXXXXXX
