TP0828S51XXXXXXX

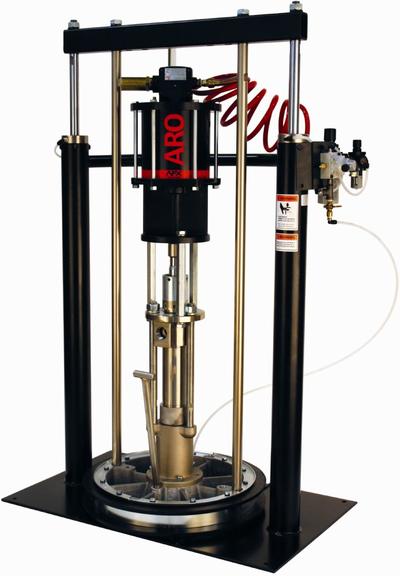

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

  • Chop-check Lower End Style
  • 28:1 Ratio
  • 8'' Air Motor
  • 6 GPM (22.7 LPM) max flow
  • Excellent for low to medium viscosity materials up to 100,000cps

Package

  • SP0828S51FF47AA0 - 55 Gallon Single Post Ram - AF0828S11FF47
  • SP0828S51FF47AC0 - 55 Gallon Single Post Ram - AF0828S11FF47
  • TP0828S51FF47AA2 - 55 Gallon Two Post Ram - AF0828S11FF47

Follower Plate Options

  • 66517-1 Double Lip, Polyurethane - Aluminum
  • 66517 Double Lip, Nitrile - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66353-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • RK2425-10 55 Gallon Single Post Ram Repair Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: TP0828S51XXXXXXX
