TP0813S51XXXXXXX

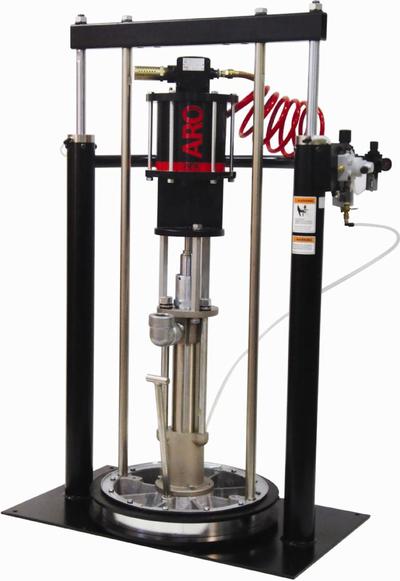

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

• Chop-check Lower End Style
• 13:1 Ratio
• 8'' Air Motor
• 12.2 GPM (46.3 LPM) max flow
• Excellent for low to medium viscosity materials up to 100,000cps

Packages

• Model No. - FM0813S11PF14001
• Package Type - Floor Mount
• Pump Model - AF0813S11PF14-1
• Floor Mount Kit - 65139
• Ball Valve - 67073
• Material Supply Hose - 628088-7
• Material Hose w/Fittings - 628089-6

Package

• TP0813S51HF44AA2 - 55 Gallon Two Post Ram - AF0813S11HF44
• FM0813S11PF14001 - Floor Mount - AF0813S11PF14-1

Follower Plate Options

• 66517-1 Double Lip, Polyurethane - Aluminum

Accessories

• 62274 Air Line Oil
• 96916 Standard Air Motor Muffler
• 66333-B Wet-Sol (1 Quart)
• 66353-1 Stabilizing Bracket
• 637489 Universal Air Motor Service Kit
• 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
• 67488 Cross Over Kit
• 67500 Low-Level Cut-Off Kit
