TP0665S51XXXXXXX

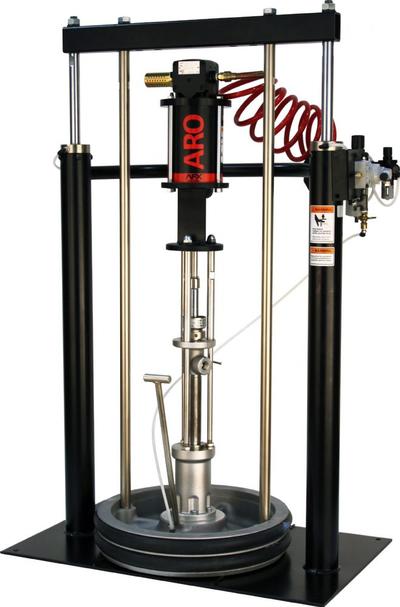

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

• Chop-check Lower End Style
• 65:1 Ratio
• 6'' Air Motor
• 1.3 GPM (5.1 LPM) max flow
• Excellent for low to medium viscosity materials up to 100,000cps

Package

• SP0665S21FF47A72 - 5 Gallon Single Post Ram - AF0665S11FF47
• SP0665S21FF47A82 - 5 Gallon Single Post Ram - AF0665S11FF47
• SP0665S21FF47E32 - 5 Gallon Single Post Ram - AF0665S11FF47
• SP0665S21FF47EA2 - 5 Gallon Single Post Ram - AF0665S11FF47
• TP0665S21FF47E32 - 5 Gallon Two Post Ram - AF0665S11FF47
• TP0665S21FF47EA2 - 5 Gallon Two Post Ram - AF0665S11FF47
• TP0665S21FF47A72 - 5 Gallon Two Post Ram - AF0665S11FF47
• TP0665S21FF47A82 - 5 Gallon Two Post Ram - AF0665S11FF47
• TP0665S51FF47AA2 - 55 Gallon Two Post Ram - AF0665S11FF47
• TP0665S51FF47AC2 - 55 Gallon Two Post Ram - AF0665S11FF47
• TP0665S51FF47AM2 - 55 Gallon Two Post Ram - AF0665S11FF47
• TP0665S51FF47AN2 - 55 Gallon Two Post Ram - AF0665S11FF47
• TP0665S51GF47AN2 - 55 Gallon Two Post Ram - AF0665S11GF47

Follower Plate Options

• 67347-2 Single Tube, EPR - Aluminum
• 67347-1 Single Tube, Neoprene - Aluminum
• 67342-1 Single Lip, Polyurethane/Urethane - Carbon Steel, Electroless Nickel Coating
• 66732-1 Double Lip, Polyurethane - Carbon Steel, Electroless Nickel Coating
• 66516-1 Double Lip, Polyurethane - Aluminum
• 66516 Double Lip, Nitrile - Aluminum
• 67195-1 Double Tube, Neoprene - Aluminum
• 67195-2 Double Tube, EPR - Aluminum

Accessories

• 62274 Air Line Oil
• 96916 Standard Air Motor Muffler
• 66333-B Wet-Sol (1 Quart)
• 66354-1 Stabilizing Bracket
• 637489 Universal Air Motor Service Kit
• 637465 5 Gallon Single Post Ram Repair Kit
• 637466 5 Gallon Two Post Ram Repair Kit
• 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
• 67448 Cross Over Kit
• 67500 Low-Level Cut-Off Kit
