TP0646S51XXXXXXX

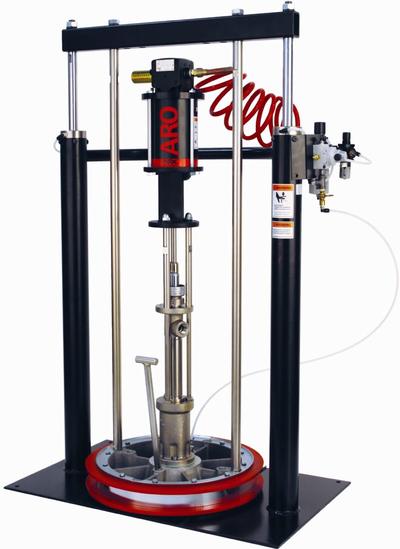

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

• Chop-check Lower End Style
• 46:1 Ratio
• 6'' Air Motor
• 1.8 GPM (6.9 LPM) max flow
• Excellent for low to medium viscosity materials up to 100,000cps

Packages

• Model No. - FM0646S11GF47001
• Package Type - Floor Mount
• Pump Model - AF0646S11GF47-1
• Floor Mount Kit - 65138
• Ball Valve - 67073
• Material Supply Hose - 628088-7
• Material Hose w/Fittings - 628089-6

Package

• SP0646S21FF47E32 5 Gallon Single Post Ram - AF0645G11RK47
• TP0646S21FF47E32 5 Gallon Two Post Ram - AF0646S11FF47
• TP0646S51FF47AA2 55 Gallon Two Post Ram - AF0646S11FF47
• TP0646S51GF47AA2 55 Gallon Two Post Ram - AF0646S11GF47
• TP0646S51KK47AA2 55 Gallon Two Post Ram - AF0646S11KK47
• TP0646S51KK47TA2 55 Gallon Two Post Ram - AF0646S11KK47
• TP0646S51HH47AA2 55 Gallon Two Post Ram - AF0646S11HH47
• TP0646S51RK47AA2 55 Gallon Two Post Ram - AF0646S11RK47

Follower Plate Options

• 67342-1 Single Lip, Polyurethane/Urethane - Carbon Steel, Electroless Nickel Coating
• 66516-1 Double Lip, Polyurethane - Aluminum
• 66516-6 Double Lip, Polyurethane - Aluminum w/PTFE Coating

Accessories

• 62274 Air Line Oil
• 96916 Standard Air Motor Muffler
• 66333-B Wet-Sol (1 Quart)
• 66354-1 Stabilizing Bracket
• 637489 Universal Air Motor Service Kit
• 637465 5 Gallon Single Post Ram Repair Kit
• 637466 5 Gallon Two Post Ram Repair Kit
• 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
• 67448 Cross Over Kit
• 67500 Low-Level Cut-Off Kit
