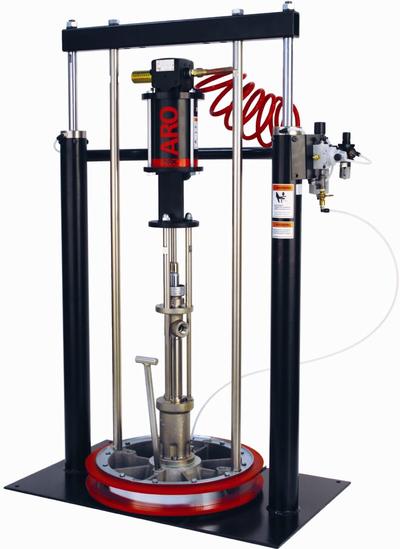

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.
Features
- Chop-check Lower End Style
- 23:1 Ratio
- 6'' Air Motor
- 3.2 GPM (12.3 LPM) max flow
- Excellent for low to medium viscosity materials up to 100,000cps
Package
- SP0623S21FF47E32 - 5 Gallon Single Post Ram - AF0623S11FF47
- SP0623S21RK47EC2 - 5 Gallon Single Post Ram - AF0623S11RK47
- TP0623S21FF47E32 - 5 Gallon Two Post Ram - AF0623S11FF47
- TP0623S51FF47AA2 - 55 Gallon Two Post Ram - AF0623S11FF47
- TP0623S51FF47AN2 - 55 Gallon Two Post Ram - AF0623S11FF47
- TP0623S51HH47AA2 - 55 Gallon Two Post Ram - AF0623S11HH47
- TP0623S51GF47AA2 - 55 Gallon Two Post Ram - AF0623S11GF47
Follower Plate Options
- 67342-1 Single Lip, Polyethylene/Urethane - Carbon Steel, Electroless Nickel Coating
- 66732 Double Lip, Nitrile - Carbon Steel, Electroless Nickel Coating
- 67342-1 Single Lip, Polyethylene/Urethane - Carbon Steel, Electroless Nickel Coating
- 66516-1 Double Lip, Polyurethane - Aluminum
- 67195-2 Double Tube, EPR - Aluminum
- 66516-1 Double Lip, Polyurethane - Aluminum
- 66516-1 Double Lip, Polyurethane - Aluminum
Accessories
- 62274 Air Line Oil
- 96916 Standard Air Motor Muffler
- 66333-B Wet-Sol (1 Quart)
- 66354-1 Stabilizing Bracket
- 637489 Universal Air Motor Service Kit
- 637465 5 Gallon Single Post Ram Repair Kit
- 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
- 67448 Cross Over Kit
- 67500 Low-Level Cut-Off Kit
