TP0412S51XXXXXXX

Capable of moving medium to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cPs.

Features

  • Chop-check Lower End Style
  • 12:1 Ratio
  • 4 1/4'' Air Motor
  • 3.2 GPM (12.3 LPM) max flow
  • Excellent for low to medium viscosity materials up to 100,000cps

Package

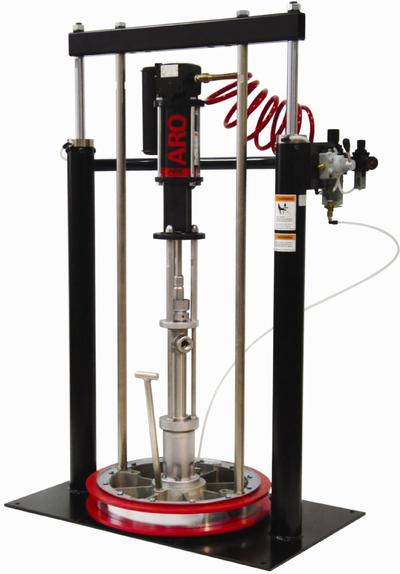

  • TP0412S51FF47AA2 - 55 Gallon Two Post Ram - AF0412S11FF47
  • TP0412S51KK47AA2 - 55 Gallon Two Post Ram - AF0412S11KK47
  • TP0412S51HH47AA2 - 55 Gallon Two Post Ram - AF0412S11HH47
  • TP0412S51GF47TA2 - 55 Gallon Two Post Ram - AF0412S11GF47
  • TP0412S51GF47AA2 - 55 Gallon Two Post Ram - AF0412S11GF47

Follower Plate Options

  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516-6 Double Lip, Polyurethane - Aluminum w/PTFE Coating
  • 66516-1 Double Lip, Polyurethane - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66354-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: TP0412S51XXXXXXX
