HD1044S51XXXXXXX

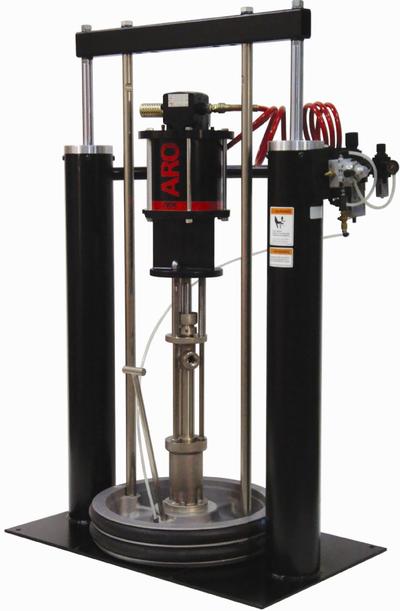

Features a heavy duty two post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

  • Chop-check Lower End Style
  • 44:1 Ratio
  • 10'' Air Motor
  • 6 GPM (22.9 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Package

  • TP1044S51FF47AM2 - 55 Gallon Two Post Ram - AF1044S11FF47
  • TP1044S51FF47AC2 - 55 Gallon Two Post Ram - AF1044S11FF47
  • HD1044S51FF47AN2 - 55 Gallon Heavy Duty Two Post Ram - AF1044S11FF47

Follower Plate Options

  • 67196-1 - Double Tube, Neoprene - Aluminum
  • 66517 - Double Lip, Nitrile - Aluminum
  • 67196-2 - Double Tube, EPR - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66354-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 637472 55 Gallon Two Post Ram Repair Kit (RM552H-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: HD1044S51XXXXXXX
