HD0844S51XXXXXXX

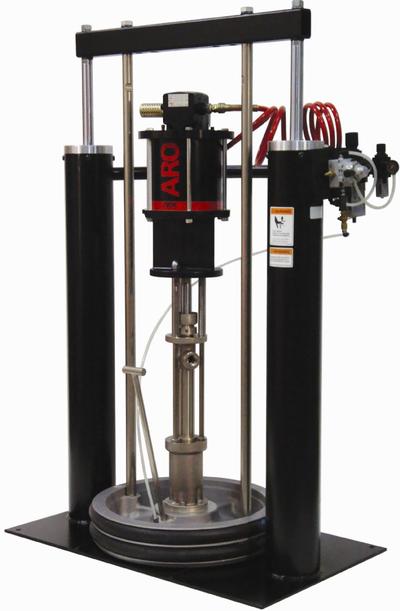

Features a heavy duty two post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required.

Features

  • Chop-check Lower End Style
  • 44:1 Ratio
  • 8'' Air Motor
  • 3.8 GPM (14.3 LPM) max flow
  • Capable of moving medium to high viscosity fluids ranging from 15,000 to more than 1,000,000

Package

  • TP0844S21FF47E32 - 5 Gallon Two Post Ram - AF0844S11FF47
  • TP0844S51FF47AA2 - 55 Gallon Two Post Ram - AF0844S11FF47
  • TP0844S51FF47AN2 - 55 Gallon Two Post Ram - AF0844S11FF47
  • TP0844S51HH47AA2 - 55 Gallon Two Post Ram - AF0844S11HH47
  • TP0844S51HH47AC2 - 55 Gallon Two Post Ram - AF0844S11HH47
  • TP0844S51RK47AA2 - 55 Gallon Two Post Ram - AF0844S11RK47
  • TP0844S51RK47AC2 - 55 Gallon Two Post Ram - AF0844S11RK47
  • TP0844S51RK47TA2 - 55 Gallon Two Post Ram - AF0844S11RK47
  • HD0844S51FF47AN2 - 55 Gallon Heavy Duty Two Post Ram - AF0844S11FF47

Follower Plate Options

  • 67342-1 Single Lip, Polyurethane/Urethane - Carbon Steel, Electroless Nickel Coating
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 67195-2 Double Tube, EPR - Aluminum
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516 Double Lip, Nitrile - Aluminum
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 66516 Double Lip, Nitrile - Aluminum
  • 66516-6 Double Lip, Polyurethane - Alumium w/PTFE Coating
  • 67195-2 Double Tube, EPR - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66353-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637466 5 Gallon Two Post Ram Repair Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 637472 55 Gallon Two Post Ram Repair Kit (RM552H-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: HD0844S51XXXXXXX
