TP0443S21XXXXXXX

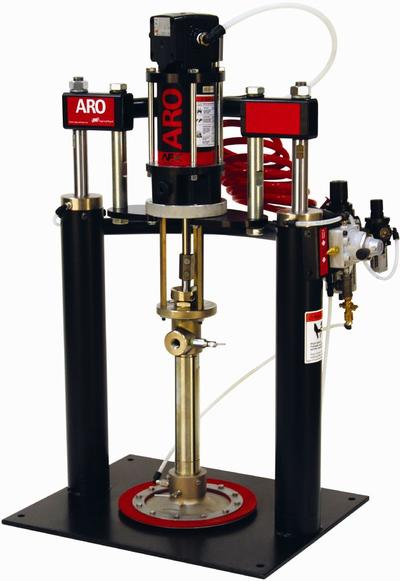

Features a two-post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum down force is required.

Features

  • Chop Check Lower End Style
  • 43:1 Ratio
  • 4 1/4'' Air Motor
  • 0.74 GPM (2.8 LPM) max flow
  • Capable of moving medium to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cPs

Packages

  • CL0443S21GN47E31 - Cart Mount w/Lift - AF0443S21GN47-1 / 67075-B
  • CL0443T21GN47S31 - Cart Mount w/Lift - AF0443T21GN47-1 / 67075-B
  • SP0443S21GN47E52 - 5 Gallon Single Post Ram - AF0443S21GN47
  • SP0443T21GN47S32 - 5 Gallon Single Post Ram - AF0443T21GN47
  • TP0443S21GN47E52 - 5 Gallon Two Post Ram - AF0443S21GN47
  • TP0443T21GN47S32 - 5 Gallon Two Post Ram - AF0443T21GN47
  • TP0443S21GN47E32 - 5 Gallon Two Post Ram - AF0443S21GN47

Follower Plate Options

  • 651840-1 Single Lip, Polyethylene/Urethane - Carbon Steel, Electroless Nickel Coating
  • 651841-1 Single Lip, Polyethylene/Urethane - Stainless Steel
  • 651840-3 Single Lip, Nitrile/Polyethylene - Carbon Steel, Electroless Nickel Coating
  • 651841-1 Single Lip, Urethane/Polyethylene - Stainless Steel
  • 651840-1 Single Lip, Urethane/Polyethylene - Carbon Steel, Electroless Nickel Coating

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • F35341-400 Filter
  • 104317 Filter Element
  • 637489 Universal Air Motor Service Kit
  • 637465 5 Gallon Single Post Ram Repair Kit
  • 637466 5 Gallon Two Post Ram Repair Kit
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: TP0443S21XXXXXXX
