SP0623S21XXXXXXX

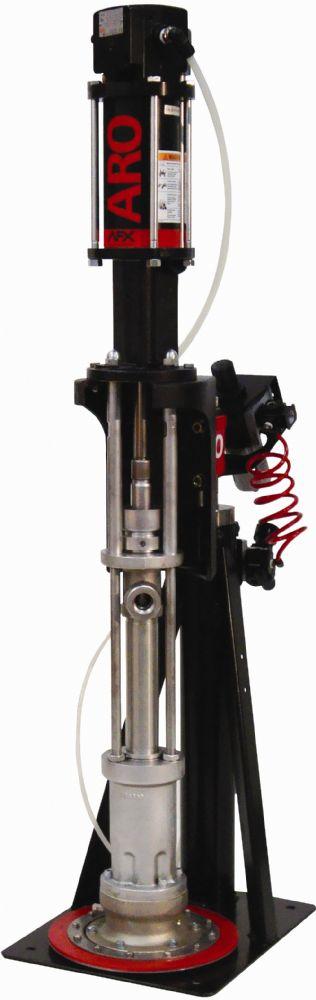

Ideal for medium to heavy viscosity extrusion, ARO’s single post ram with pump, follower plate, and controls allows for easy container changeover while providing industry-leading down force during operation.

Features

  • Chop Check Lower End Style
  • 23:1 Ratio
  • 6'' Air Motor
  • 3.2 GPM (12.3 LPM) max flow
  • Capable of moving medium to high-viscosity fluids ranging from 15,000 to more than 1,000,000 cPs

Packages

  • SP0623S21FF47E32 - 5 Gallon Single Post Ram - AF0623S11FF47
  • SP0623S21RK47EC2 - 5 Gallon Single Post Ram - AF0623S11RK47
  • TP0623S21FF47E32 - 5 Gallon Two Post Ram - AF0623S11FF47
  • TP0623S51FF47AA2 - 55 Gallon Two Post Ram - AF0623S11FF47
  • TP0623S51FF47AN2 - 55 Gallon Two Post Ram - AF0623S11FF47
  • TP0623S51HH47AA2 - 55 Gallon Two Post Ram - AF0623S11HH47
  • TP0623S51GF47AA2 - 55 Gallon Two Post Ram - AF0623S11GF47

Follower Plate Options

  • 67342-1 Single Lip, Polyethylene/Urethane - Carbon Steel, Electroless Nickel Coating
  • 66732 Double Lip, Nitrile - Carbon Steel, Electroless Nickel Coating
  • 66516-1 Double Lip, Polyurethane - Aluminum
  • 67195-2 Double Tube, EPR - Aluminum

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • 66354-1 Stabilizing Bracket
  • 637489 Universal Air Motor Service Kit
  • 637465 5 Gallon Single Post Ram Repair Kit
  • 637491 55 Gallon Two Post Ram Repair Kit (RM552S-X)
  • 67448 Cross Over Kit
  • 67500 Low-Level Cut-Off Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
