CM0660G11XXXXXXX

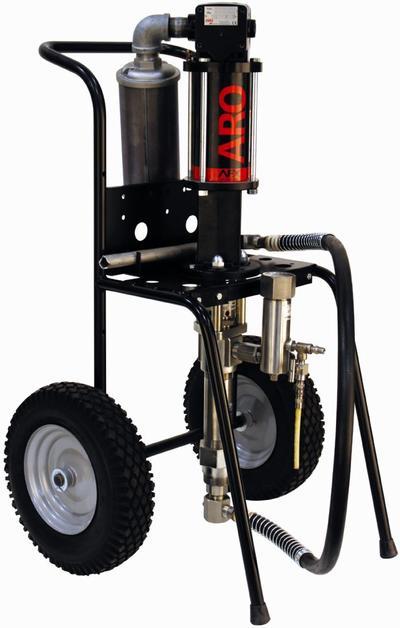

Popular in airless spray applications, these packages feature a high-pressure pump, air control, material filter, and suction hose – all mounted on a heavy duty cart.

Features

  • Two Ball Lower End Style
  • 60:1 Ratio
  • 6'' Air Motor
  • 1.4 GPM (5.4 LPM) max flow
  • Excellent for low to medium viscosity materials up to 100,000 cPs

Package

  • Model No. - CM0660G11GF47001
  • Package Type - Cart Mount
  • Pump Model - AF0660G11GF47-1
  • Cart Model - 67139
  • Material Hose - 67140-1
  • Material Filter - 651422-70
  • Ball Valve Regulator - 67442

Accessories

  • 62274 Air Line Oil
  • 96916 Standard Air Motor Muffler
  • 66333-B Wet-Sol (1 Quart)
  • F35341-400 Filter
  • 104317 Filter Element
  • 637489 Universal Air Motor Service Kit
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: CM0660G11XXXXXXX
