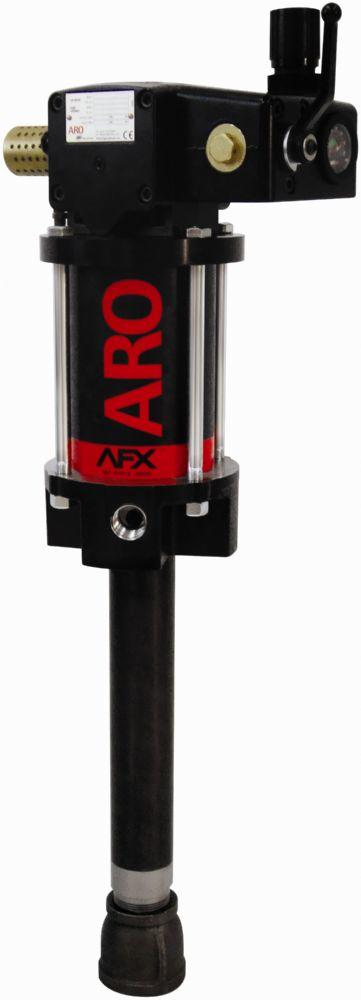

LM Series 3:1 (4-1/4" Air Motor)

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

Pump Specifications
Lower Pump Material Carbon Steel
Air Motor Diameter 4 1/4 ”
Air Inlet Pressure Range psi (bar) 0-150 (0-10.3)
Fluid Pressure Range psi (bar) 0-1350 (0-93.1)
Stroke Length 4”
Max. Recommended Cycles / Minute 75
Flow Rate gpm (lpm) 3.9 (14.8)
Cycles Per Gallon (Liter) 19.2 (5.0)
Air Inlet Size 1/2” (F)
Fluid Outlet Size 3/4” (F)
Fluid Inlet Size Immersed
Noise Level @ 60 psi – 40 cpm 89.2 db(A)



Pump Model Packing Material
(Upper/Lower)
Container Size gal (L)
Piston Pump 9:1 Ratio 4-1/4” diameter air motor (AF0409 Series)
AF0409A13PFL1 Polyurethane/UHMW-PE Stub
AF0409A43PFL1 Polyurethane/UHMW-PE 16 (60.6)
AF0409A53PFL1 Polyurethane/UHMW-PE 55 (208.2)
ENGINEERING OPERATION & MAINTENANCE MANUAL
Product Name: LM Series 3:1 (4-1/4" Air Motor)
