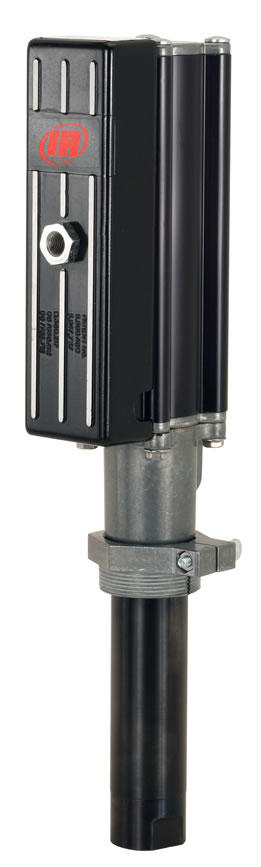

LM Series 3:1 (2" Air Motor)

Features

  • Ideal for pumping motor oil, gear oil, or transmission fluid
  • Simple, durable design allows for piston pump service by any owner or technician!!
  • Reliability - Features stall-free, ice-free air motor & tough, durable housing to improve pump reliability
  • Durability - Increases durability by eliminating trip rods or push pins in our pump design
  • Serviceability - Simple self-service maintenance due to advanced design with 50% fewer parts
  • Serviceability - Reduced service time. No special tools required to service pump in-line (3:1 pumps)

Accessories

  • 635190-1 (pint) Meter
  • 635391-1 Control Handle
  • 640058-2 Dolly
  • 94421 Drum Cover
  • 623501-6 Hose
  • 67185 Valve

ARO® lubrication pumps handle motor and gear oils, transmission fluid, and standard and industrial greases. Pumps are offered from 3:1 to 100:1 ratios in order to meet the requirements of any application - commercial vehicle servicing to lubricating heavy mining equipment.

Pump Specifications
Lower Pump Material Carbon Steel
Air Motor Diameter 2”
Air Inlet Pressure Range psi (bar) 0-150 (0-10.3)
Fluid Pressure Range psi (bar) 0-450 (0-31)
Stroke Length 3”
Max.Recommended Cycles/Minute 125
Flow Rate gpm (lpm) 6 (22.7)
Cycles Per Gallon (Liter) 37 (9.8)
Air Inlet Size 1/4” (F)
Fluid Outlet Size 1/2” (F)
Fluid Inlet Size (stub) 3/4” (F)
Noise Level @ 100 psi – 124 cpm 80 db(A)



Pump Model   Container Size gal (L)
3:1 Piston Pump
LM2203A-11-C (-12-C = BSP Thread) Stub
LM2203A-31-C (-32-C = BSP Thread) 16 (60.6)
LM2203A-41-C (-42-C = BSP Thread) 55 (208.2)
LM2203A-51-C (-52-C = BSP Thread) 275 (1040.9)
